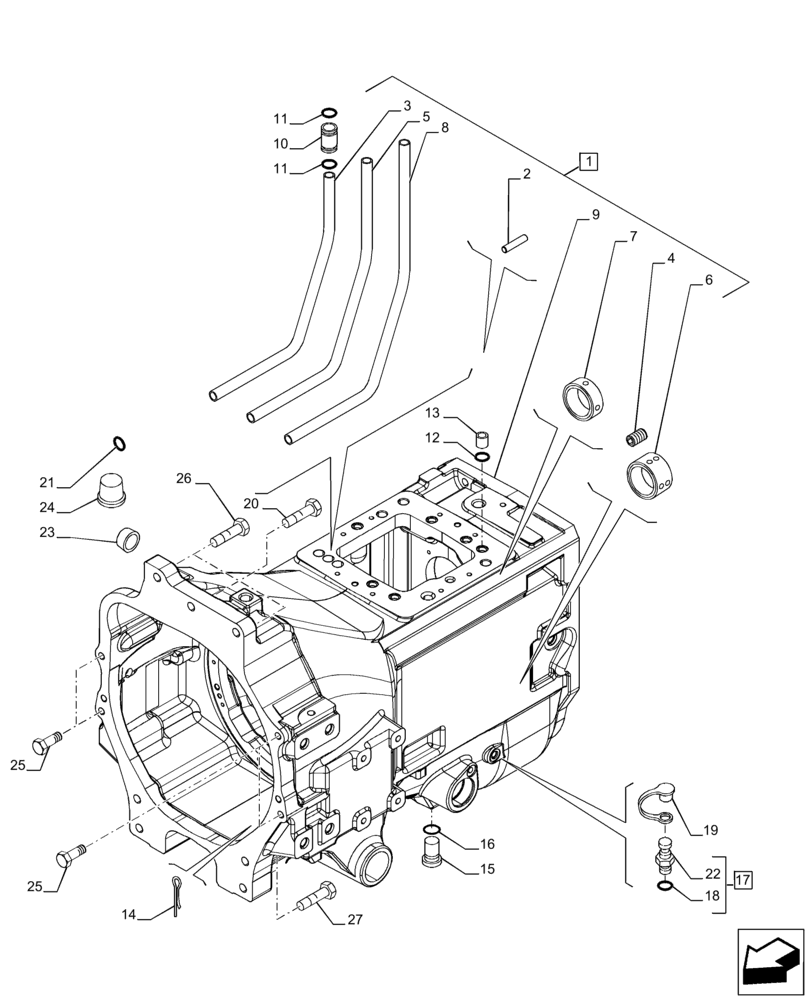

Запчасти Case IH PUMA 185 (21.120.AB[01]) - VAR - 391137, 337426, 337428, 337429, 337430, 337431, 337432, 338397, 758017, 758018, 758019, 758020, 758021, 759052, 759053 - GEARBOX, POWERSHIFT (21) - TRANSMISSION

1

47361978

TRANSMISSION HOUSING

ASSY, Incl 2 - 9

1шт.

2

5153109

DOWEL,10mm OD x 15mm L

2шт.

3

5186835

TUBE

1шт.

4

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

2шт.

5

5186834

TUBE

1шт.

6

5189017

BUSHING,90.02mm ID x 100.06mm OD x 52.5mm L

1шт.

7

5189016

BUSHING,90.02mm ID x 100.06mm OD x 28mm L

1шт.

8

5186836

TUBE

1шт.

9

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

10

5198658

BUSHING

3шт.

11

5103230

O-RING,2.62mm Thk x 11.91mm ID

6шт.

12

14457281

O-RING,0.612" ID x 0.103" Width

6шт.

13

5178778

SPACER,11mm ID x 15mm OD x 15mm L

6шт.

14

10798204

COTTER PIN,M6.3 x 32

1шт.

15

5187246

PLUG

1шт.

16

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

17

5185423

COUPLING

ASSY, Incl 18, 22

4шт.

18

47725668

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

19

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

4шт.

20

15981234

BOLT,Hex, M16 x 1.5 x 65mm, Cl 10.9

1шт.

21

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

5шт.

22

NSS

NOT SOLD SEPARAT

Coupling, Incl in 17

1шт.

23

82037172

PLUG

8шт.

24

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

8шт.

25

15982134

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

4шт.

26

15982334

BOLT,Hex, M16 x 1.5 x 150mm, Cl 10.9

2шт.

27

11254134

SCREW,Hex, M16 x 1.5 x 80mm, Cl 10.9

4шт.
