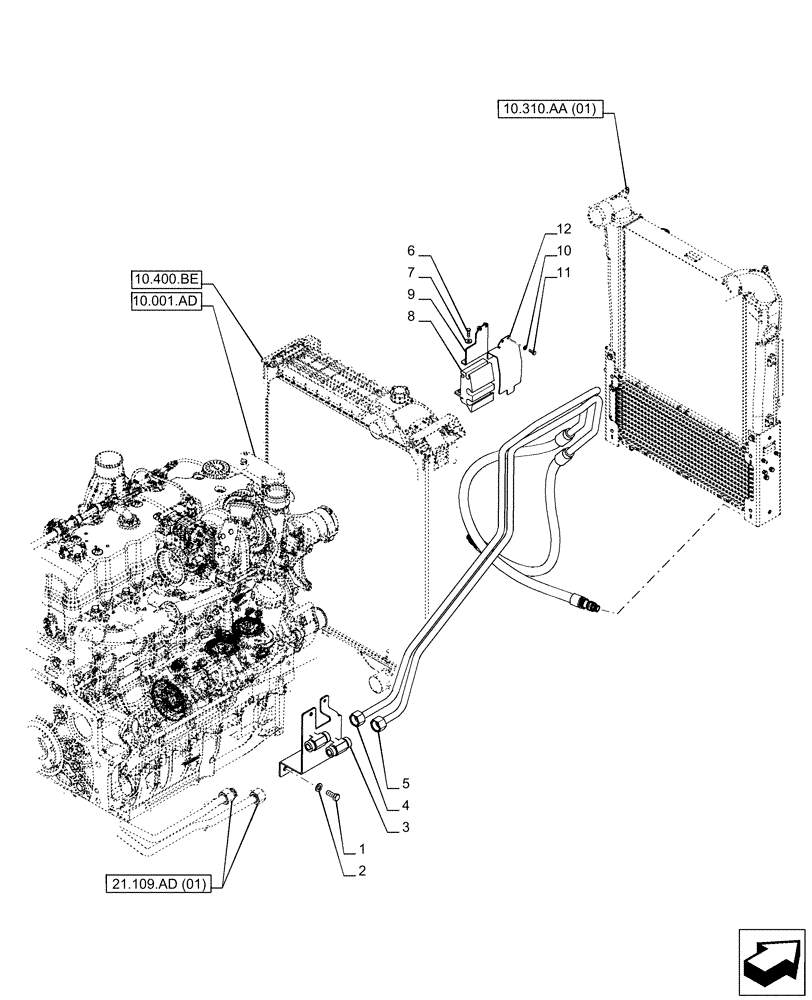

Запчасти Case IH PUMA 185 (21.109.AD[02]) - VAR - 337426, 337428, 337429, 337430, 337431, 337432, 391137, 758017, 758018, 758019, 758020, 758021, 759052 - TRANSMISSION, OIL COOLER, LINE (21) - TRANSMISSION

1

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

2

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

3

47471159

BRACKET

1шт.

4

47427909

PIPE

Oil Cooler Supply

1шт.

5

47427907

PIPE

Oil Cooler Return

1шт.

6

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

7

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

8

47601350

SUPPORT

1шт.

9

87650542

BRACKET

1шт.

10

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

11

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

12

87488159

BRACKET

1шт.
