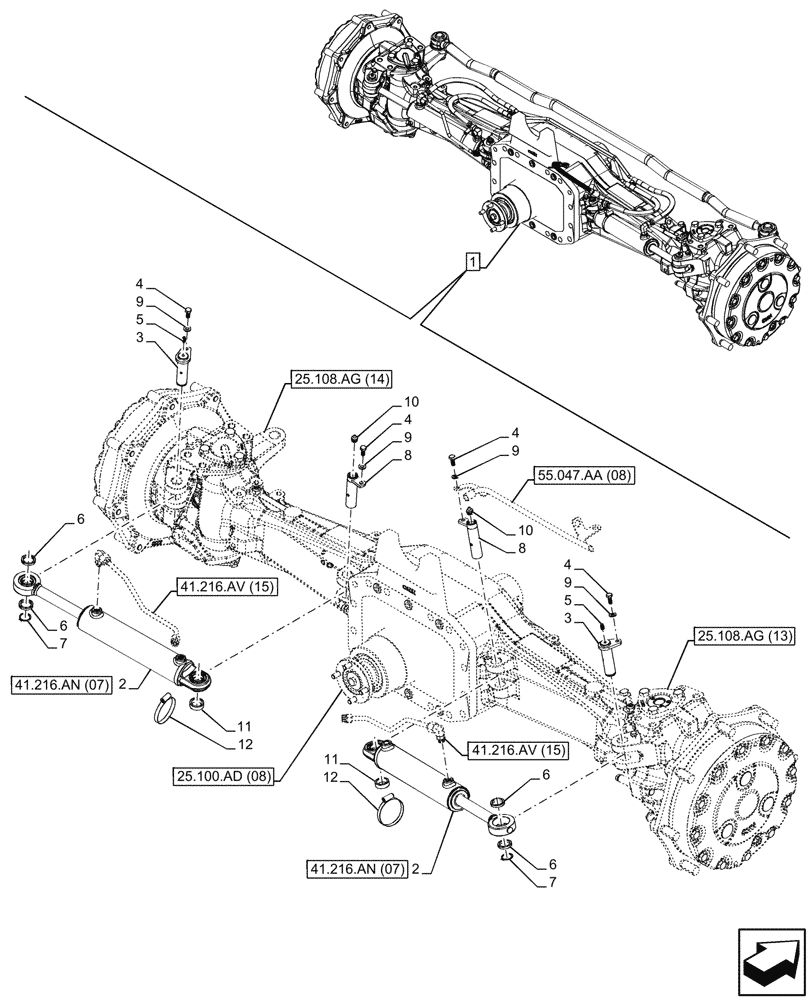

Запчасти Case IH PUMA 185 (41.216.AN[09]) - VAR - 758048 - SUSPENDED FRONT AXLE, STEERING CYLINDER (41) - STEERING

1

84381237

LIVE FRONT AXLE

ASSY, 4WD Suspended, Incl 2 - 12

1шт.

See Axle Components also in Figure 25.100.AD (08), 25.102.AD (08), 25.108.AA (07), 25.108.AB (02), 25.108.AG (13), 25.108.AG (14), 41.106.AG (08), 41.216.AV (15), 55.047.AA (08)

1шт.

2

5198883

STEERING CYLINDER,Double Acting, 25mm Rod, 232.5mm Stroke

ASSY

2шт.

3

5171707

PIN,24.97mm OD x 91mm L

2шт.

4

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

5

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

6

5111573

SPACER,25.5mm ID x 34mm OD x 5.9mm L

4шт.

7

11067376

SNAP RING,M25, Ext

2шт.

8

5198013

PIN,24.97mm OD x 100mm L

2шт.

9

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

10

5191671

LUBE NIPPLE,45 Degree, M14 x 1.5

2шт.

11

5111576

SPACER,25.5mm ID x 34mm OD x 11mm L

2шт.

12

13000990

COLLAR,60mm - 80mm, Worm Gear

2шт.
