Запчасти Case IH PUMA 185 (41.200.CO[05]) - VAR - 758267, 758271, 758278 - FAST STEER, CONTROL VALVE, COMPONENTS, POWERSHIFT (41) - STEERING

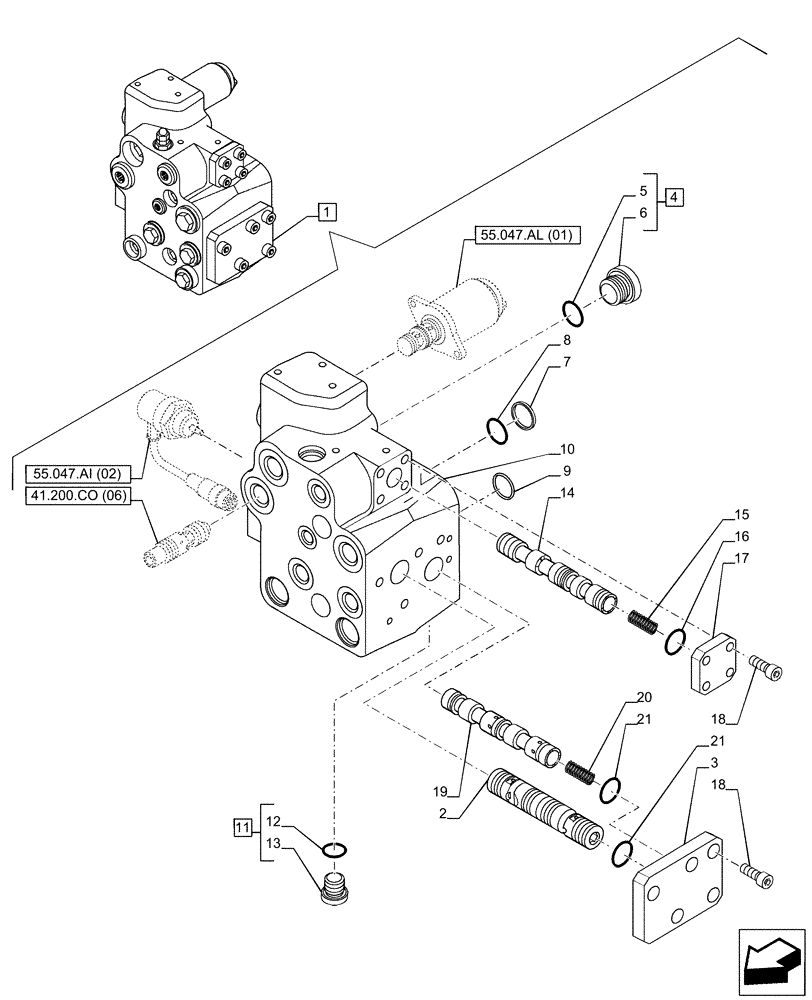

Схема запчастей Case IH PUMA 185 - (41.200.CO[05]) - VAR - 758267, 758271, 758278 - FAST STEER, CONTROL VALVE, COMPONENTS, POWERSHIFT (41) - STEERING
55.047.ai (02)
18
12
21
20
9
1
3
15
17
18
4
16
7
14
2
6
11
21
10
13
41.200.co (06)
5
8
19
55.047.al (01)

Артикул

Название

Примечание

Количество

1

87546345

HYDRAULIC VALVE

Fast Steering ASSY, Incl 2 - 21

1шт.

See Also Figure 41.200. CO (03)

1шт.

2

47128840

SPOOL

1шт.

3

47128847

FLANGE

1шт.

4

47128844

PLUG

ASSY, Incl 5, 6

1шт.

5

129979

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

6

NSS

NOT SOLD SEPARAT

Plug, Incl in 4

1шт.

7

47136168

BACK-UP RING

4шт.

8

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

4шт.

9

87705324

SEAL

1шт.

10

NSS

NOT SOLD SEPARAT

Valve Body, Incl in 1

1шт.

11

47128842

PLUG,M12 x 1.5 x 17mm, w/Seal

ASSY, Incl 12, 13

1шт.

12

47129249

O-RING,0.362" ID x 0.568" OD x 0.103"

1шт.

13

NSS

NOT SOLD SEPARAT

Plug, Incl in 11

1шт.

14

87387085

SPOOL

1шт.

15

47128854

SPRING

1шт.

16

14453581

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

17

47128846

FLANGE

1шт.

18

14305773

SCREW,M6 x 14mm

9шт.

19

47128838

SPOOL

1шт.

20

47128853

SPRING

1шт.

21

14453681

O-RING,0.07" Thk x 0.801" ID, -19, Cl 7, 75 Duro

2шт.

Выбрано товаров: 22
