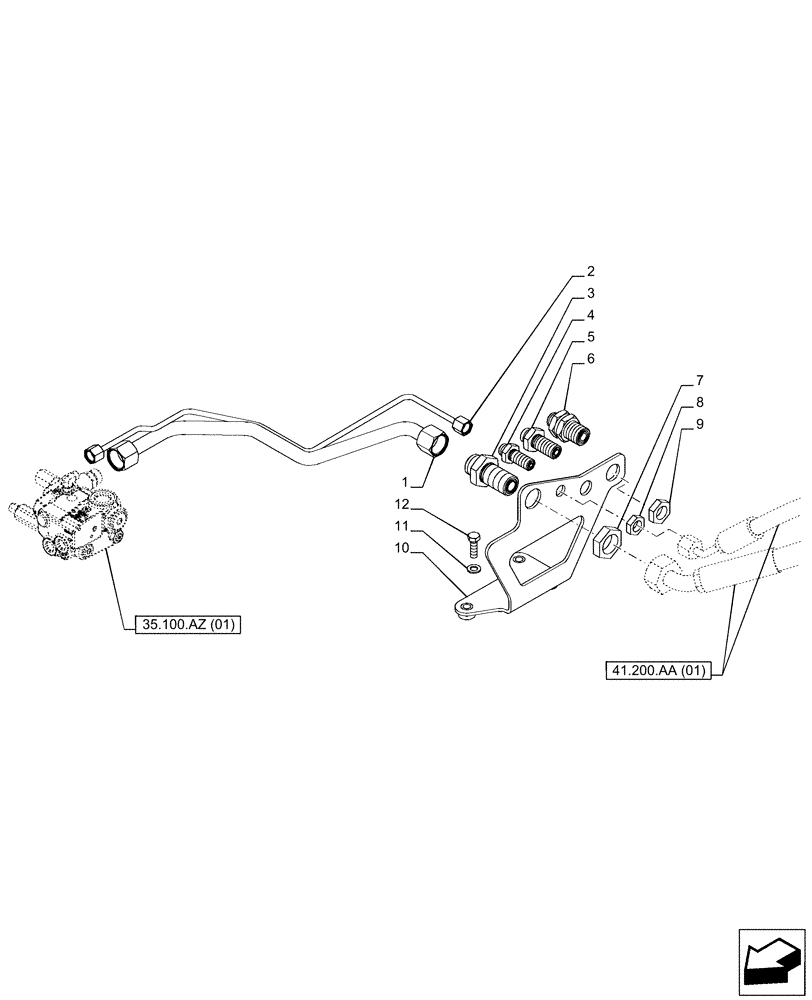

Запчасти Case IH PUMA 185 (41.200.AA[09]) - VAR - 337435, 337467, 337468, 337469 - STEERING VALVE, LINE, POWERSHIFT (41) - STEERING

1

47693055

PIPE

1шт.

2

47693015

PIPE

1шт.

3

86978771

UNION,16mm L

1шт.

4

86639059

UNION,9/16"-18 ORFS, Blkd

1шт.

5

86978770

UNION,11/16"-6, ORFS

1шт.

6

87711900

HYD CONNECTOR

1шт.

7

86639085

BHD LOCK NUT,1"-14, Bulkhead

1шт.

8

86639063

BHD LOCK NUT,9/16"-18, ORFS Blkhd

1шт.

9

87010704

BHD LOCK NUT,11/16"-16

1шт.

10

47693060

BRACKET

1шт.

11

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

12

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

13

NSS

NOT SOLD SEPARAT

1шт.

14

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

15

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

16

NSS

NOT SOLD SEPARAT

1шт.

17

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

18

NSS

NOT SOLD SEPARAT

1шт.

19

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

20

NSS

NOT SOLD SEPARAT

1шт.

21

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.
