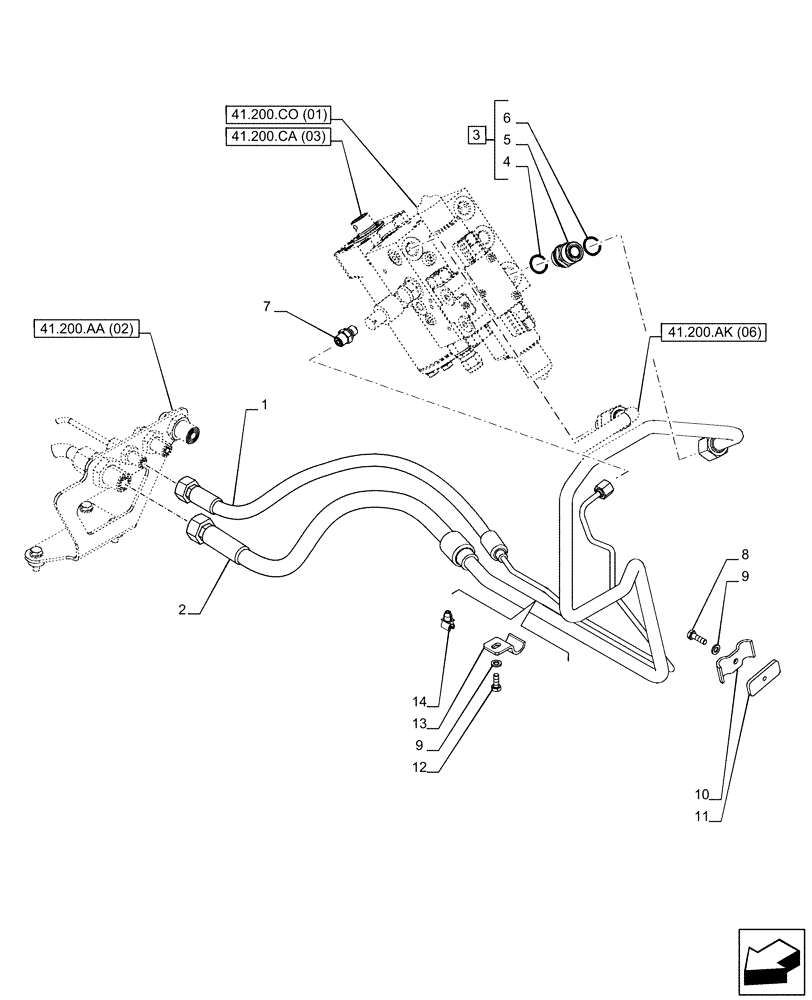

Запчасти Case IH PUMA 185 (41.200.AA[07A]) - VAR - 337438, 337468, 337466, 758268, 758269, 758272, 758273 - STEERING VALVE, LINE, AUTOGUIDANCE SYSTEM, POWERSHIFT - BEGIN YR 03-APR-2014 (41) - STEERING

1

47695258

PIPE

LS Steering Autoguidance

1шт.

2

47695267

PIPE

Supply to Steering Valve

1шт.

3

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

ASSY, Incl 4 - 6

1шт.

4

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

6

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

7

76076087

FITTING,M12 x 1.5 ORB x 9/16"-18 ORFS

1шт.

8

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

9

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

10

47370751

CLIP

1шт.

11

84591886

PLATE

1шт.

12

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

13

5178447

BRACKET

1шт.

14

87710266

CLIP,6mm

1шт.
