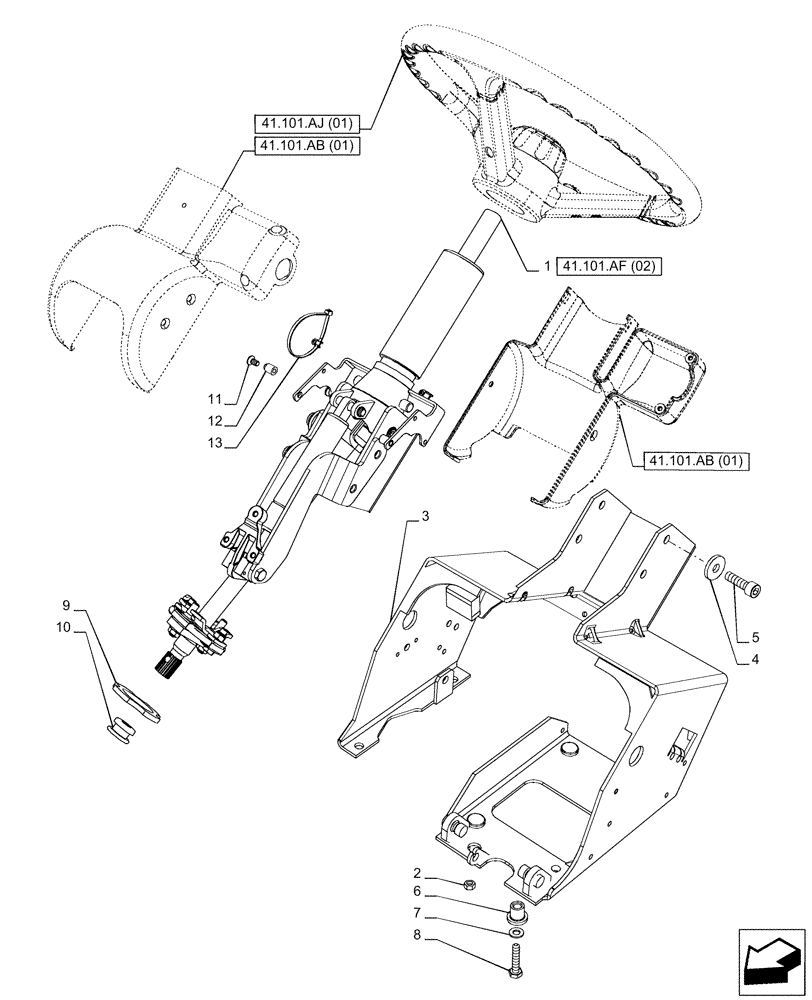

Запчасти Case IH PUMA 185 (41.101.AF[05]) - VAR - 337435, 337467, 337468, 337469 - STEERING COLUMN (41) - STEERING

1

47383940

STEERING COLUMN,Tilting, Telescoping

1шт.

2

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

3

84598289

BRACKET

1шт.

4

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

4шт.

5

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

4шт.

6

82027074

SPACER,20mm ID x 30mm OD x 25mm L

6шт.

7

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

6шт.

8

11107221

BOLT,Hex, M10 x 50mm, Cl 8.8

4шт.

9

81873344

RUBBER INSULATOR

1шт.

10

82009429

ISOLATOR

4шт.

11

15957101

SELF-TAP SCREW,Pan, M3.5 x 10.00mm, R40, ZND

1шт.

12

47056773

RETAINER COLLAR,5mm ID x 19.1mm L x 9.5mm W

1шт.

13

14560287

CABLE TIE,207.00mm L

1шт.
