Запчасти Case IH PUMA 185 (35.100.AZ[05]) - VAR - 337487 - HYDRAULIC AND PNEUMATIC TRAILER BRAKE, LINES, ANTILOCK BRAKING SYSTEM (ABS) (35) - HYDRAULIC SYSTEMS

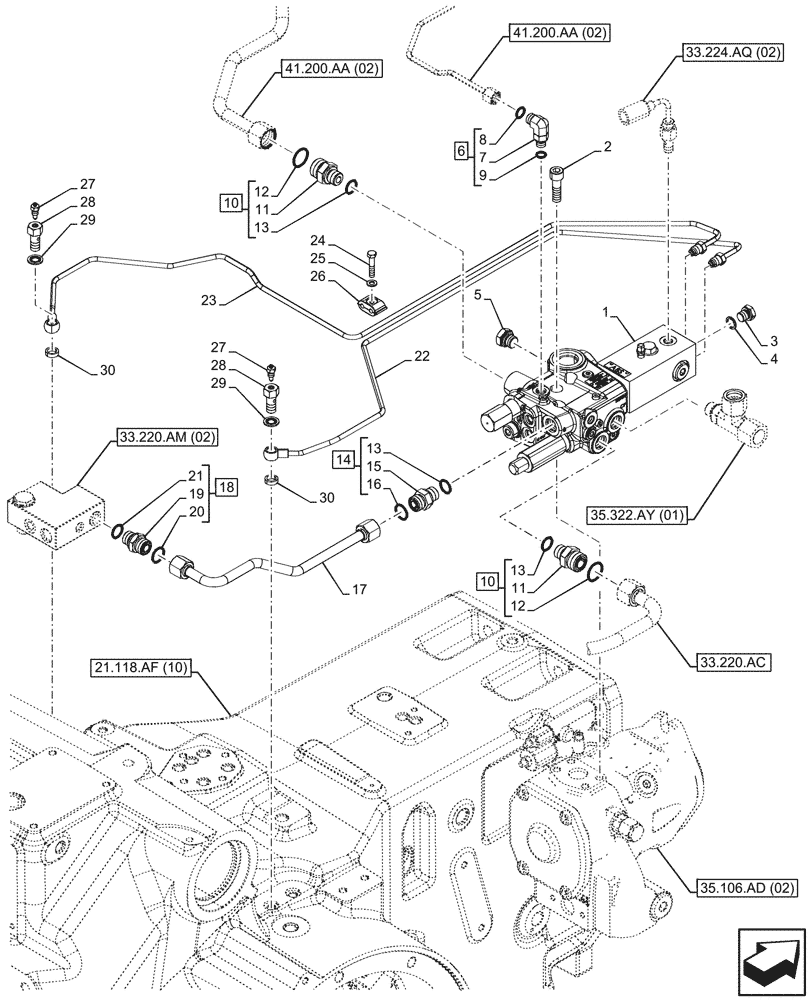

Схема запчастей Case IH PUMA 185 - (35.100.AZ[05]) - VAR - 337487 - HYDRAULIC AND PNEUMATIC TRAILER BRAKE, LINES, ANTILOCK BRAKING SYSTEM (ABS) (35) - HYDRAULIC SYSTEMS
35.106.ad (02)
11
27
15
14
1
30
18
26
3
28
9
16
7
8
30
21
24
28
22
27
2
10
25
12
6
29
5
23
19
11
13
10
29
4
20
17
13
12
13
33.220.am (02)
33.220.ac
35.322.ay (01)
33.224.aq (02)
41.200.aa (02)
41.200.aa (02)
21.118.af (10)

Артикул

Название

Примечание

Количество

1

47750123

FLOW CONTROL VALVE

1шт.

2

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

3

47131496

PLUG,Hex, M12 x 1

1шт.

4

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

5

86981620

PLUG,M16 x 1.5, ORB

1шт.

6

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Elbow, Incl in 6

1шт.

8

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

9

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

10

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

ASSY, Incl 11 -13

2шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

1шт.

12

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

13

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

14

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

ASSY, Incl 13, 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

Connector, Incl in 14

1шт.

16

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

17

47423734

PIPE

1шт.

18

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

ASSY, Incl 19 - 20

1шт.

19

NSS

NOT SOLD SEPARAT

Connector, Incl in 18

1шт.

20

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

21

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

22

47590473

PIPE

Brake RH

1шт.

23

47590471

PIPE

Brake LH

1шт.

24

10978221

BOLT,Hex, M5 x 25mm, Cl 8.8, Full Thd

1шт.

25

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

1шт.

26

87738904

CLAMP BRACKET

1шт.

27

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

28

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

2шт.

29

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

30

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

2шт.

Выбрано товаров: 30
