(33.350.AT[05]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), BRAKE LINE, REAR

Запчасти Case IH PUMA 185 (33.350.AT[05]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), BRAKE LINE, REAR (33) - BRAKES & CONTROLS

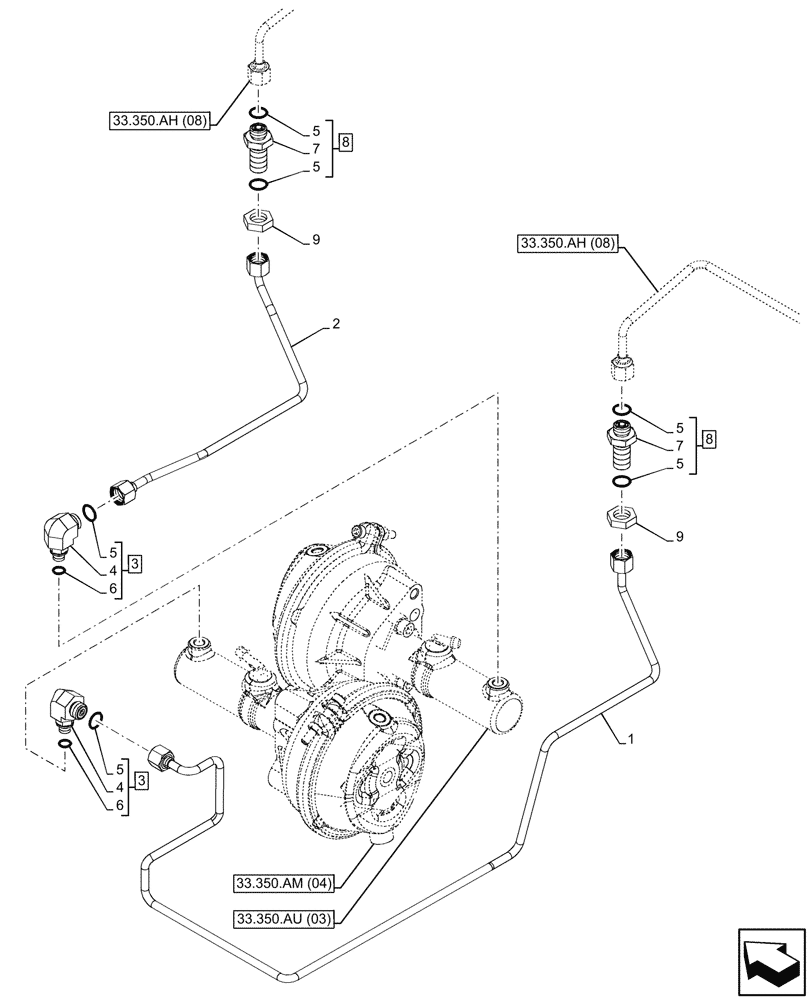

Схема запчастей Case IH PUMA 185 - (33.350.AT[05]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), BRAKE LINE, REAR (33) - BRAKES & CONTROLS
33.350.ah (08)
6
5
5
5
9
7
9
8
1
4
7
5
3
5
8
3
2
6
5
4
33.350.am (04)
33.350.au (03)
33.350.ah (08)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84577489

TUBE

LH, Rear Brake

1шт.

2

84577490

TUBE

RH, Rear Brake

1шт.

3

84427439

90 ELBOW

ASSY, Incl 4, 5 (Qty 1), 6

2шт.

4

NSS

NOT SOLD SEPARAT

Elbow, Incl in 3

2шт.

5

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

6

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

2шт.

8

86978770

UNION,11/16"-6, ORFS

ASSY, Incl 5 (Qty 2), 10

2шт.

9

87010704

BHD LOCK NUT,11/16"-16

2шт.
