Запчасти Case IH PUMA 185 (33.350.AT[03]) - VAR - 337484, 337487 - ANTILOCK BRAKING SYSTEM (ABS), REAR, BRAKE LINE (33) - BRAKES & CONTROLS

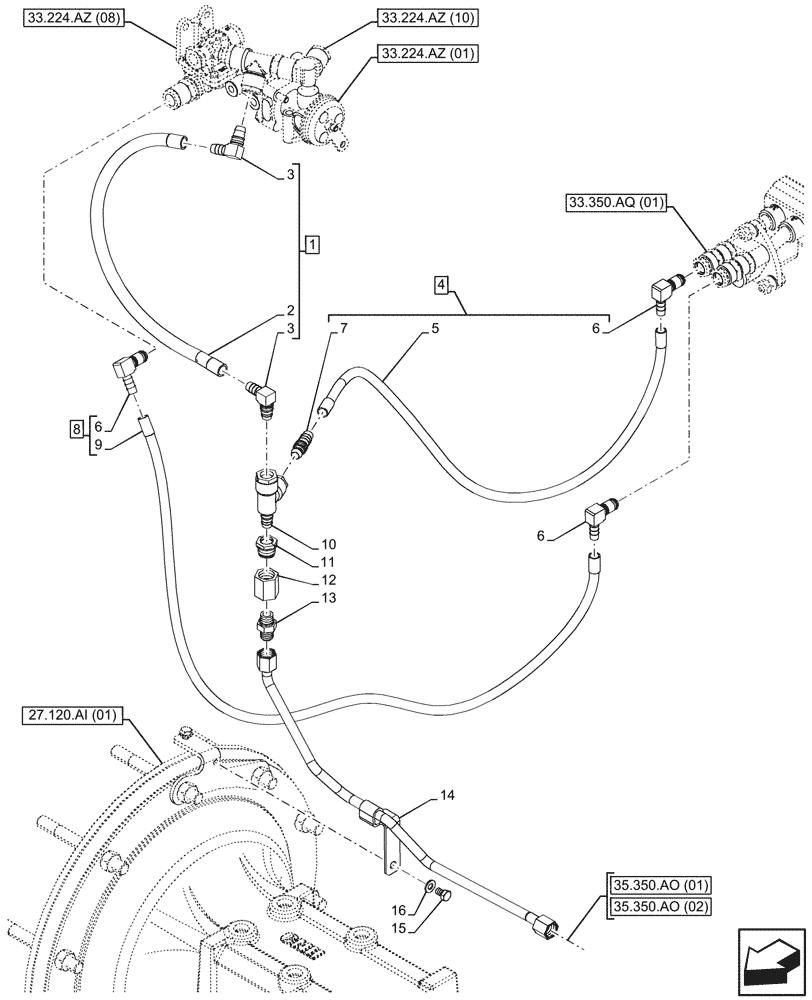

Схема запчастей Case IH PUMA 185 - (33.350.AT[03]) - VAR - 337484, 337487 - ANTILOCK BRAKING SYSTEM (ABS), REAR, BRAKE LINE (33) - BRAKES & CONTROLS
33.224.az (10)
3
15
10
11
7
6
3
2
9
14
13
6
1
16
12
4
5
3
8
6
35.350.ao (02)
33.350.aq (01)
35.350.ao (01)
33.224.az (01)
27.120.ai (01)
33.224.az (08)

Артикул

Название

Примечание

Количество

1

47390958

TUBE

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

3

82038453

HYD CONNECTOR,232 NG12 x 16mm D

2шт.

4

47375576

TUBE

ASSY, Incl 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

Tube, Incl in 4

1шт.

6

82038479

90 ELBOW,NG12 x 12mm D

1шт.

7

87588082

HYD CONNECTOR,M12 x 1.5

1шт.

8

47369468

HOSE

ASSY, Incl

1шт.

9

NSS

NOT SOLD SEPARAT

Tube, Incl in

1шт.

10

84185248

HYD CONNECTOR

1шт.

11

82036156

FITTING,M22 x 1.5 x NG12

1шт.

12

84174059

HYD CONNECTOR

1шт.

13

84181658

HYD CONNECTOR

1шт.

14

47389585

PIPE

1шт.

15

336199

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

16

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

Выбрано товаров: 16
