Запчасти Case IH PUMA 185 (33.350.AK[01]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), FOOT CONTROL VALVE, LINE (33) - BRAKES & CONTROLS

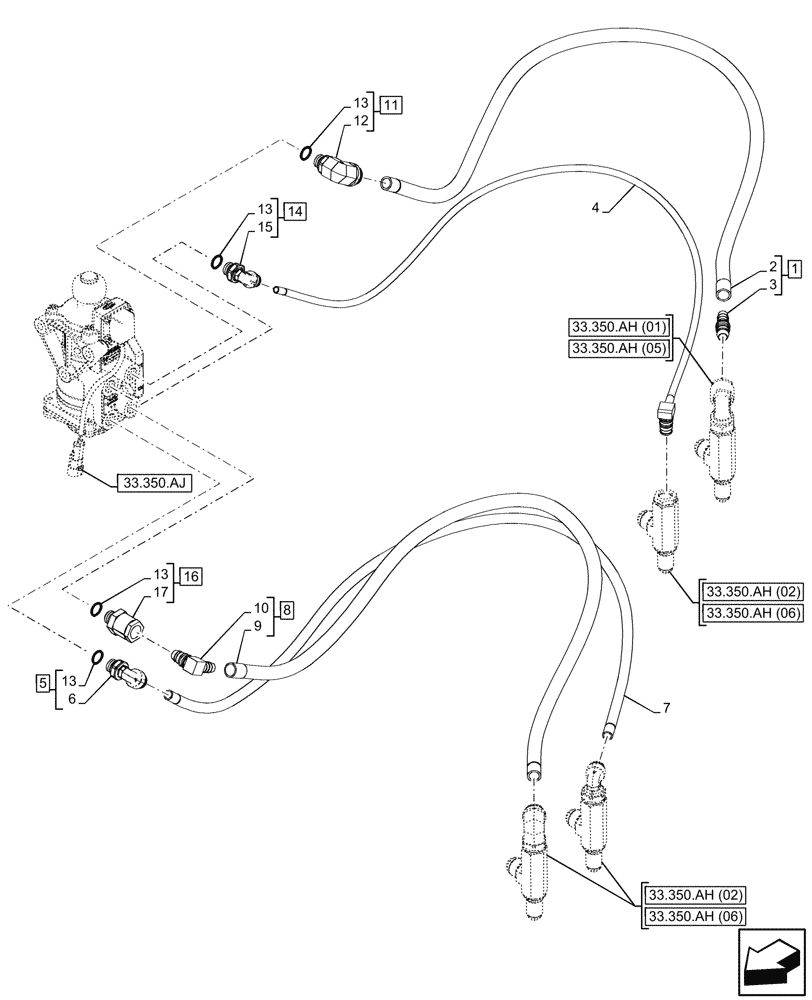

Схема запчастей Case IH PUMA 185 - (33.350.AK[01]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), FOOT CONTROL VALVE, LINE (33) - BRAKES & CONTROLS
33.350.ah (06)
6
13
5
13
3
15
17
13
9
12
2
10
11
1
14
16
4
8
7
13
33.350.ah (01)
33.350.aj
33.350.ah (05)
33.350.ah (02)
33.350.ah (02)
33.350.ah (06)

Артикул

Название

Примечание

Количество

1

47369176

HOSE,14mm ID x 1200mm L

ASSY, from Foot Brake Valve to EBM, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.

3

87347329

HYD CONNECTOR,NG12 x 16mm D

1шт.

4

47369182

HOSE,8mm ID x 1200mm L

ASSY, from Foot Brake Valve to EBM

1шт.

5

84514790

90 ELBOW,M16 x 1.5mm, for 12mm OD Hose

ASSY, Incl 13 (Qty 1), 6

1шт.

6

NSS

NOT SOLD SEPARAT

Elbow, Incl in 5

1шт.

7

47369187

HOSE,9mm ID x 1200mm L

from Foot Brake Valve to EBM

1шт.

8

47369174

HOSE,14mm ID x 1200mm L

ASSY, from Foot Brake Valve to EBM, Incl 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Pipe, Incl in 8

1шт.

10

82038453

HYD CONNECTOR,232 NG12 x 16mm D

1шт.

11

47369197

90 ELBOW,M16 x 1.5mm, for 16mm OD Hose

ASSY, Incl 12, 13 (Qty 1)

1шт.

12

NSS

NOT SOLD SEPARAT

Elbow, Incl in 11

1шт.

13

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

4шт.

14

84514789

90 ELBOW,M16 x 1.5mm, for 8mm OD Hose

ASSY, Incl 13 (Qty 1), 15

1шт.

15

NSS

NOT SOLD SEPARAT

Elbow, Incl in 14

1шт.

16

84157696

HYD CONNECTOR,MG12 / M16 x 1.5mm

ASSY, Incl 13 (Qty 1), 17

1шт.

17

NSS

NOT SOLD SEPARAT

Fitting, Incl in 16

1шт.

Выбрано товаров: 17
