(33.350.AG[03]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), AIR RESERVOIR, LINE

Запчасти Case IH PUMA 185 (33.350.AG[03]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), AIR RESERVOIR, LINE (33) - BRAKES & CONTROLS

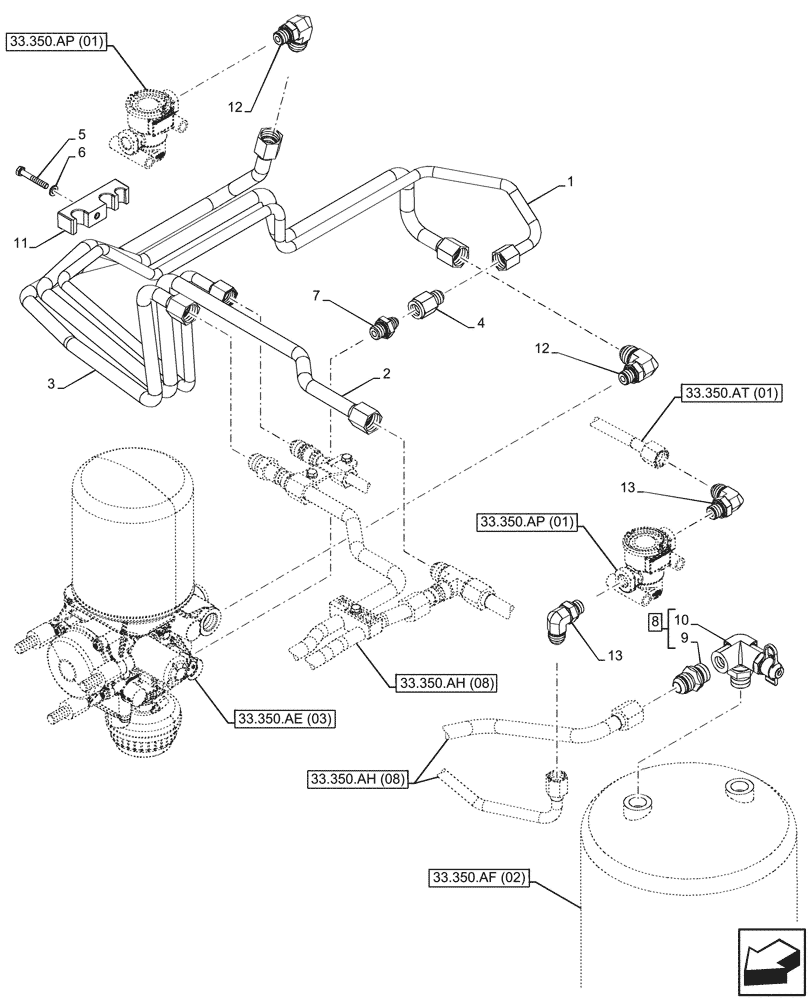

Схема запчастей Case IH PUMA 185 - (33.350.AG[03]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), AIR RESERVOIR, LINE (33) - BRAKES & CONTROLS
33.350.af (02)
1
11
8
2
13
5
12
9
10
13
4
7
12
3
6
33.350.ah (08)
33.350.ah (08)
33.350.at (01)
33.350.ap (01)
33.350.ap (01)
33.350.ae (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47509723

PIPE

from APU to PLV

1шт.

2

47509738

PIPE

from APU to Foot Brake Valve

1шт.

3

47509732

PIPE

from PLV to Foot Brake Valve

1шт.

4

87411460

REDUCER,7.64mm OD x 40.64 L

1шт.

5

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

1шт.

6

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

7

5192907

HYD CONNECTOR,M16 x 1.5 x 35mm L

1шт.

8

47673991

90 ELBOW

1шт.

9

5158803

HYD CONNECTOR,M22 x 1.5 ORB x 7/8" - 14 JIC

1шт.

10

47618996

HYD CONNECTOR,M22 x 1.5

1шт.

11

84423528

CLIP,26mm H x 21mm Thk x 93mm L

1шт.

12

47357474

HYD CONNECTOR

2шт.

13

84553346

HYD CONNECTOR,M16 x 1.5

2шт.
