Запчасти Case IH PUMA 185 (31.114.AH[08]) - VAR - 391173 - PTO, HOUSING & COVERS (31) - IMPLEMENT POWER TAKE OFF

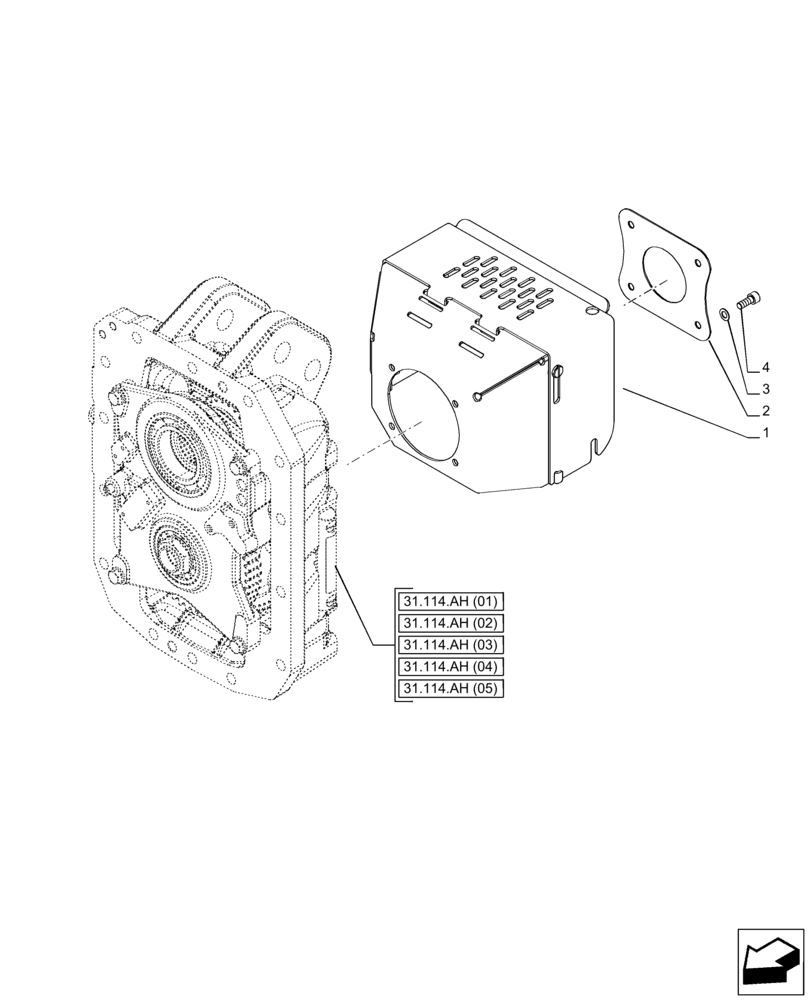

Схема запчастей Case IH PUMA 185 - (31.114.AH[08]) - VAR - 391173 - PTO, HOUSING & COVERS (31) - IMPLEMENT POWER TAKE OFF
3
1
31.114.ah (01)
4
31.114.ah (03)
31.114.ah (04)
31.114.ah (02)
31.114.ah (05)
2

Артикул

Название

Примечание

Количество

1

84568331

COVER

1шт.

2

47131825

GUARD

1шт.

3

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

4

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 4
