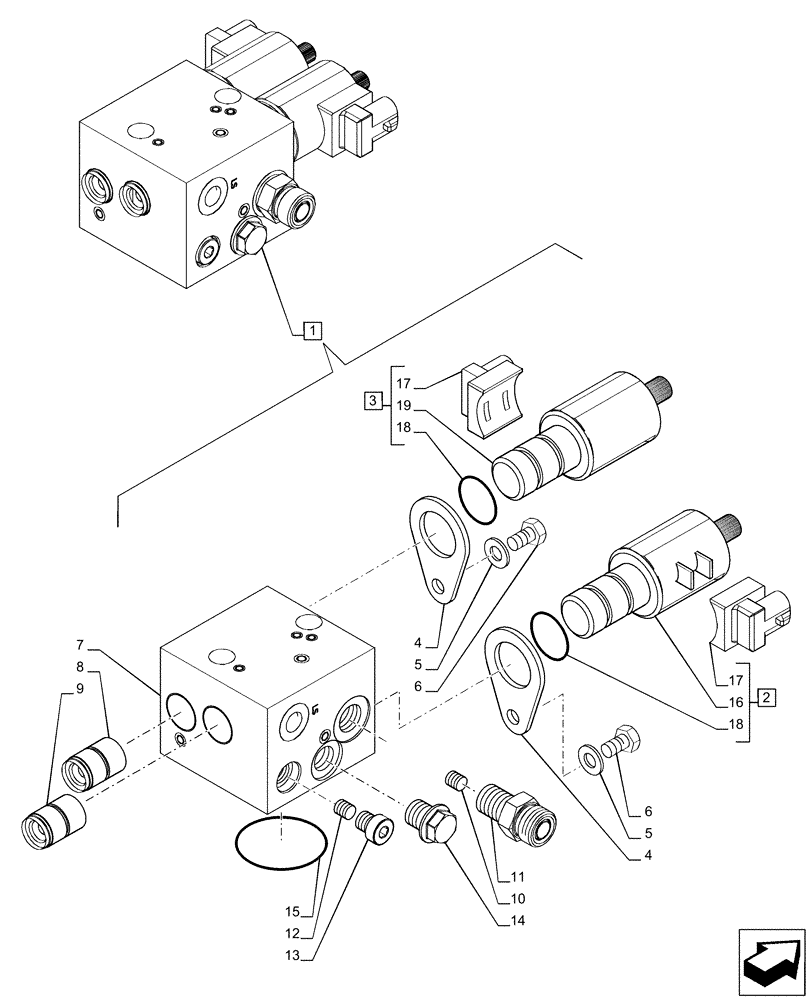

Запчасти Case IH PUMA 185 (25.122.AL[02]) - VAR - 758048, 758049 - FRONT AXLE, SUSPENDED, CONTROL VALVE, COMPONENTS, POWERSHIFT (25) - FRONT AXLE SYSTEM

1

47526297

MANIFOLD VALVE

ASSY, Incl 2 - 15

1шт.

2

84486704

SOLENOID,12 VDC, 23W, 5.9 Ohm, 210 bar

ASSY, Incl 16, 17 (Q.ty 1), 18 (Q.ty 1)

1шт.

3

87588852

SOLENOID VALVE

ASSY, Incl 17 (Q.ty 1), 18 (Q.ty 1), 19

1шт.

3

87588852R

REMAN-HYD VALVE

1шт.

3

87588852C

CORE-VALVE HYD

Return Number

1шт.

4

47526300

LOCKING RING

2шт.

5

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

6

14302921

HEX SOC SCREW,M4 x 10mm, Cl 8.8, Full Thd

2шт.

7

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

8

87758492

CHECK VALVE

1шт.

9

87758498

CHECK VALVE

1шт.

10

87758495

ORIFICE,M8, D1.25

1шт.

11

84483937

NIPPLE,M16 x 1.5mm ORB x 13/16" - 16 ORFS

1шт.

12

87758494

ORIFICE,M6, D1.0

1шт.

13

87758491

FILTER STRAINER

1шт.

14

87758496

VALVE,210 Bar

1шт.

15

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

16

84484327

CARTRIDGE

1шт.

17

87758490

COIL

2шт.

18

86637738

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

2шт.

19

84489838

SOLENOID

1шт.
