Запчасти Case IH PUMA 185 (25.122.AD[02]) - VAR - 758048, 758049 - FRONT AXLE, SUSPENDED, CYLINDER, LINE (25) - FRONT AXLE SYSTEM

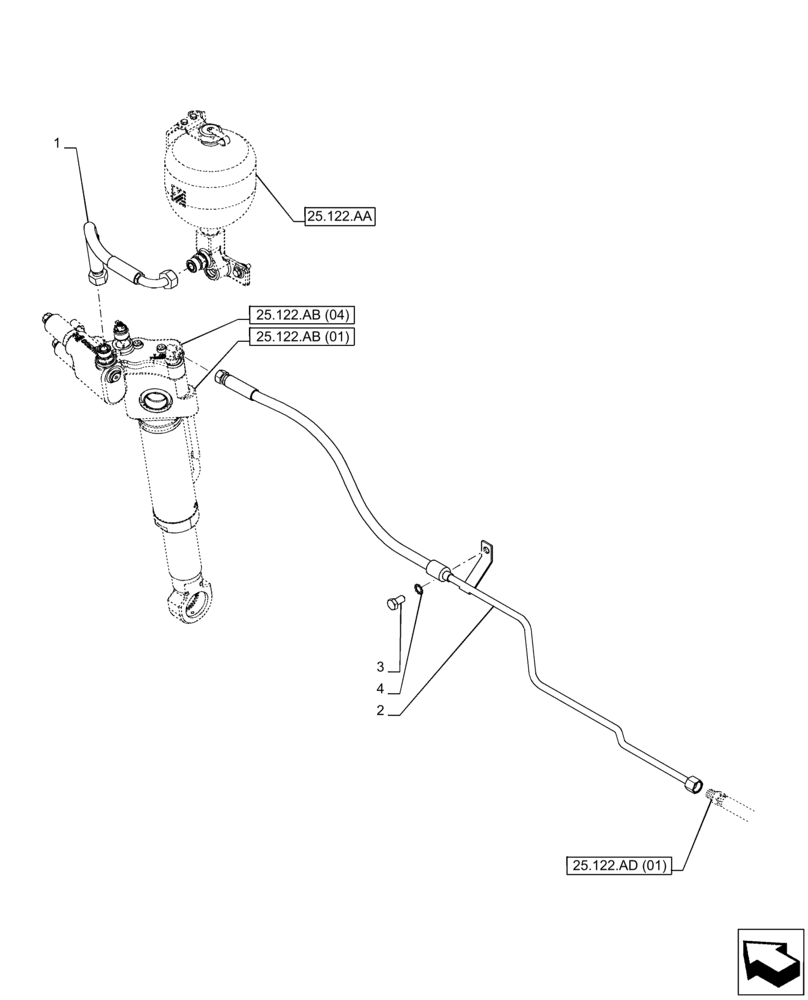

Схема запчастей Case IH PUMA 185 - (25.122.AD[02]) - VAR - 758048, 758049 - FRONT AXLE, SUSPENDED, CYLINDER, LINE (25) - FRONT AXLE SYSTEM
25.122.ab (01)
4
2
1
3
25.122.ab (04)
25.122.aa
25.122.ad (01)

Артикул

Название

Примечание

Количество

1

87545810

HOSE

Accumulator

1шт.

2

47467338

PIPE

Cylinder

1шт.

3

11112221

SCREW,Hex, M12 x 25mm, Cl 8.8, Full Thd

1шт.

4

10615879

LOCK WASHER,Serr, M12

1шт.

Выбрано товаров: 4
