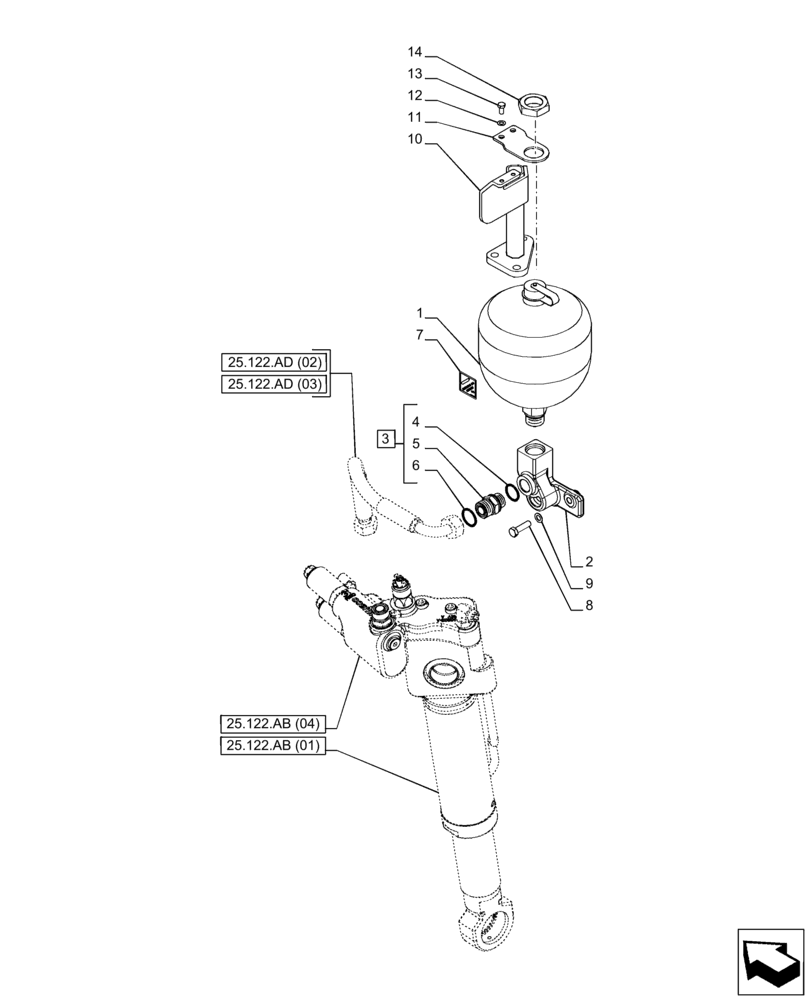

Запчасти Case IH PUMA 185 (25.122.AA) - VAR - 758048, 758049 - FRONT AXLE, SUSPENDED, ACCUMULATOR (25) - FRONT AXLE SYSTEM

1

47375129

ACCUMULATOR

1шт.

2

87545808

MANIFOLD

1шт.

3

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

ASSY, Incl 4 - 6

1шт.

4

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

6

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

7

47390628

DECAL

1шт.

8

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

9

12601379

WAVE WASHER,Wave, M8.4

2шт.

10

47586935

BRACKET

1шт.

11

47586053

BRACKET

1шт.

12

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

2шт.

13

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

14

87536932

THIN NUT

M28 x 1.5

1шт.
