Запчасти Case IH PUMA 185 (25.108.AN[06]) - VAR - 391157, 758048 - 4WD FRONT AXLE, STEERING KNUCKLE, RH, WHEEL, HUB (25) - FRONT AXLE SYSTEM

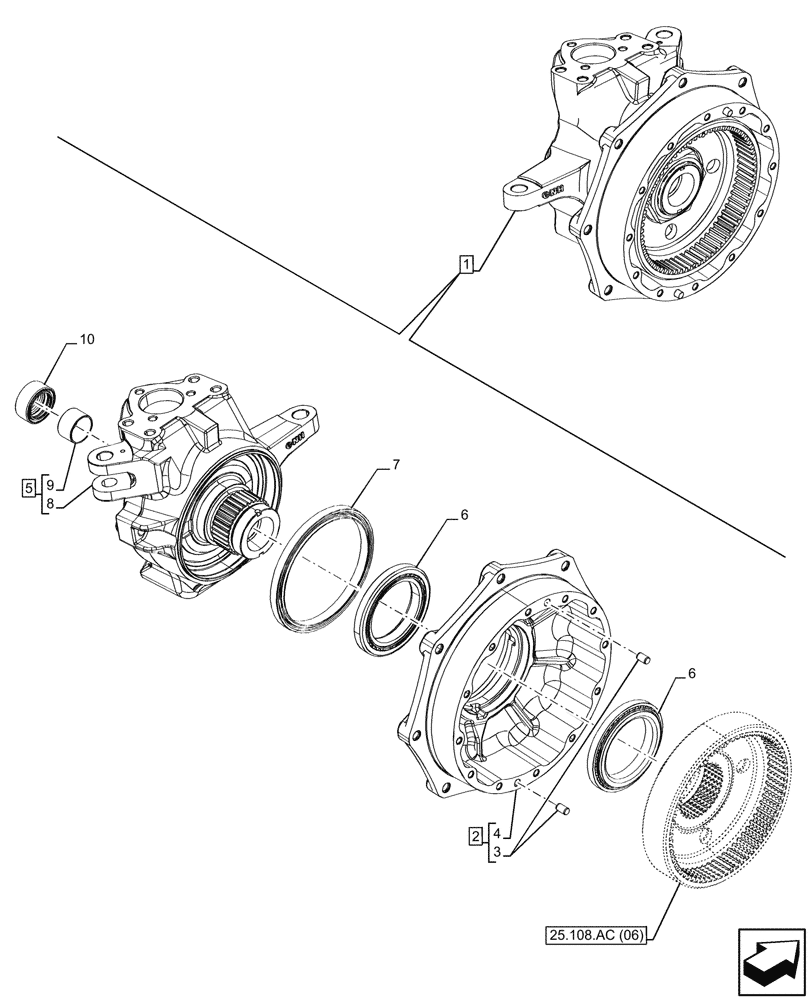

Схема запчастей Case IH PUMA 185 - (25.108.AN[06]) - VAR - 391157, 758048 - 4WD FRONT AXLE, STEERING KNUCKLE, RH, WHEEL, HUB (25) - FRONT AXLE SYSTEM
10
4
8
3
25.108.ac (06)
7
9
1
6
6
2
5

Артикул

Название

Примечание

Количество

1

84189974

ASSY, RH, Incl 2 - 10

1шт.

See Steering Knuckle Components also in Figure 25.108.AC (06)

1шт.

2

47924204

HUB

ASSY, Incl 3, 4

1шт.

3

4985063

DOWEL,12mm OD x 20mm L

2шт.

4

NSS

NOT SOLD SEPARAT

Hub, Incl in 2

1шт.

5

84188828

KNUCKLE,RH

ASSY, Incl 8, 9

1шт.

6

5133737

ROLLER BEARING,109.5mm ID x 158.75mm OD x 23mm W

2шт.

7

87355801

SEAL,190mm ID x 220mm OD x 17mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

Knuckle, Incl in 5

1шт.

9

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

1шт.

10

84166643

SEAL,45mm ID x 65mm OD x 27mm Thk

1шт.

Выбрано товаров: 11
