Запчасти Case IH PUMA 185 (25.100.BL[01]) - VAR - 758048, 758049 - FRONT AXLE, SUSPENDED, ARM (25) - FRONT AXLE SYSTEM

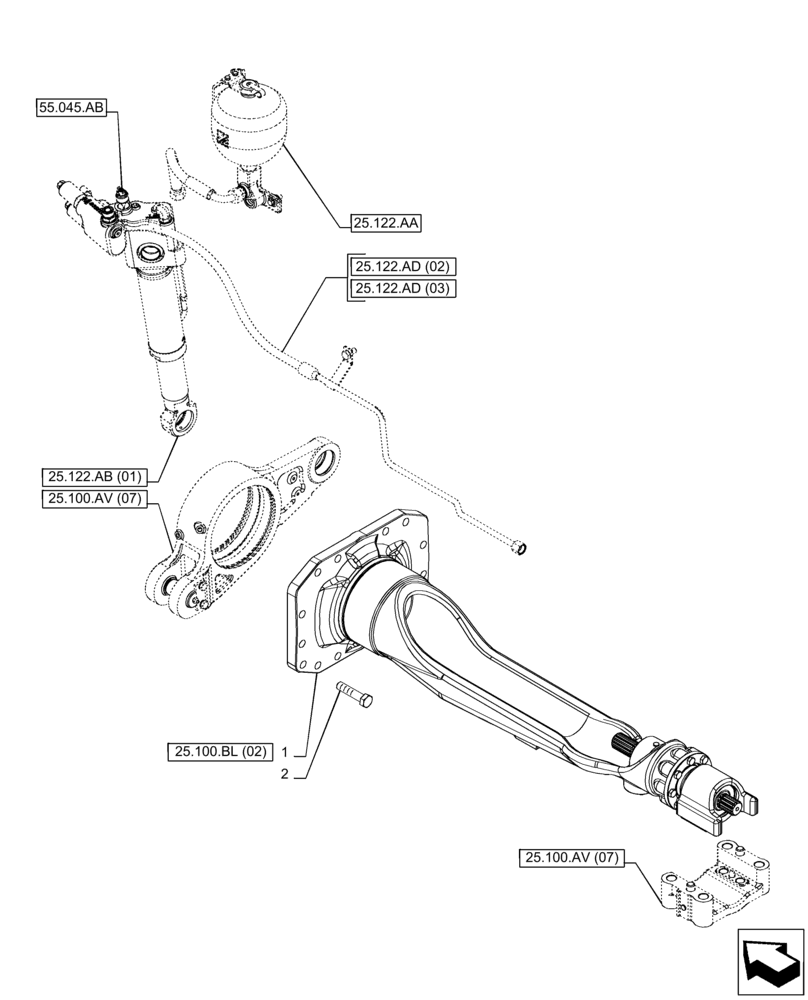

Схема запчастей Case IH PUMA 185 - (25.100.BL[01]) - VAR - 758048, 758049 - FRONT AXLE, SUSPENDED, ARM (25) - FRONT AXLE SYSTEM
1
25.122.ad (02)
55.045.ab
25.100.bl (02)
25.100.av (07)
25.122.aa
25.122.ab (01)
25.122.ad (03)
2
25.100.av (07)

Артикул

Название

Примечание

Количество

1

87644385

AXLE,Arm Assembly, Suspension, Front

1шт.

2

15984834

SCREW,Hex, M18 x 1.5 x 80mm, Cl 10.9

14шт.

Выбрано товаров: 2
