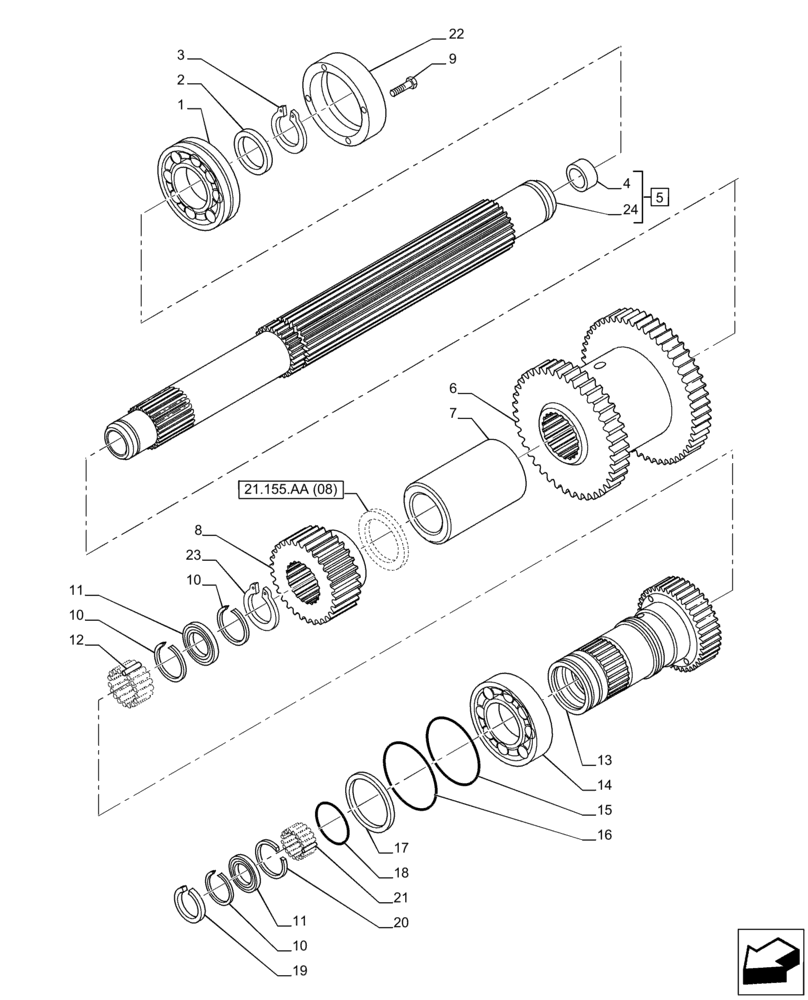

Запчасти Case IH PUMA 185 (21.155.AA[04]) - VAR - 337426, 337428, 337429, 337430, 337431, 337432, 391137, 758017, 758018, 758019, 758020, 758021 - TRANSMISSION, DRIVE SHAFT, UPPER (21) - TRANSMISSION

1

28995910

BALL BEARING,110.00mm OD

1шт.

2

5144962

THRUST WASHER,50.1mm ID x 62mm OD x 3mm Thk

1шт.

3

5138419

SNAP RING,M50

1шт.

4

5107725

BUSHING,31.99mm ID x 36mm OD x 25mm L

1шт.

5

5183123

MAIN SHAFT

ASSY, Incl 4 - 24

1шт.

6

87553311

PINION

3/4 and 5/6 Speed Driving Gear

1шт.

7

5183725

SPACER,54.7mm ID x68mm OD x 103.75mm L

1шт.

8

87557567

PINION

1st Speed Driving Gear

1шт.

9

47526495

PREV TORQUE BOLT,Hex, M8 x 1.25 x 30mm L, Cl 8.8

4шт.

10

5142178

SNAP RING,1.5mm Thk

3шт.

11

5162255

GASKET,50mm ID x 58mm OD x 4mm Thk

2шт.

12

5162256

NEEDLE BEARING,Needle, 50mm ID x 58mm OD x 25mm W

1шт.

13

87553308

PINION

1шт.

14

87373867

BALL BEARING,80mm ID x 140mm OD x 26mm W

1шт.

15

14460680

O-RING,0.103" Thk x 2.737" ID, -148, Cl 5, 75 Duro

1шт.

16

14464980

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

17

5162361

RING,66.83mm ID x 72.83mm OD x 1.27mm Thk

1шт.

18

14455480

O-RING,0.07" Thk x 2.489" ID, -37, Cl 5, 75 Duro

1шт.

19

5195945

SEALING RING,Split, 41.3mm ID x 45mm OD x 2.4mm Thk

45mm

1шт.

20

5149933

SNAP RING,55mm, 1.5mm Thk, Int

D=55

1шт.

21

5162254

NEEDLE BEARING,50mm ID x 55mm OD x 20mm W

1шт.

22

5171949

COVER

1шт.

23

5134792

SNAP RING,50.80mm ID, 3mm Thk

1шт.

24

NSS

NOT SOLD SEPARAT

Shaft, Incl in 5

1шт.
