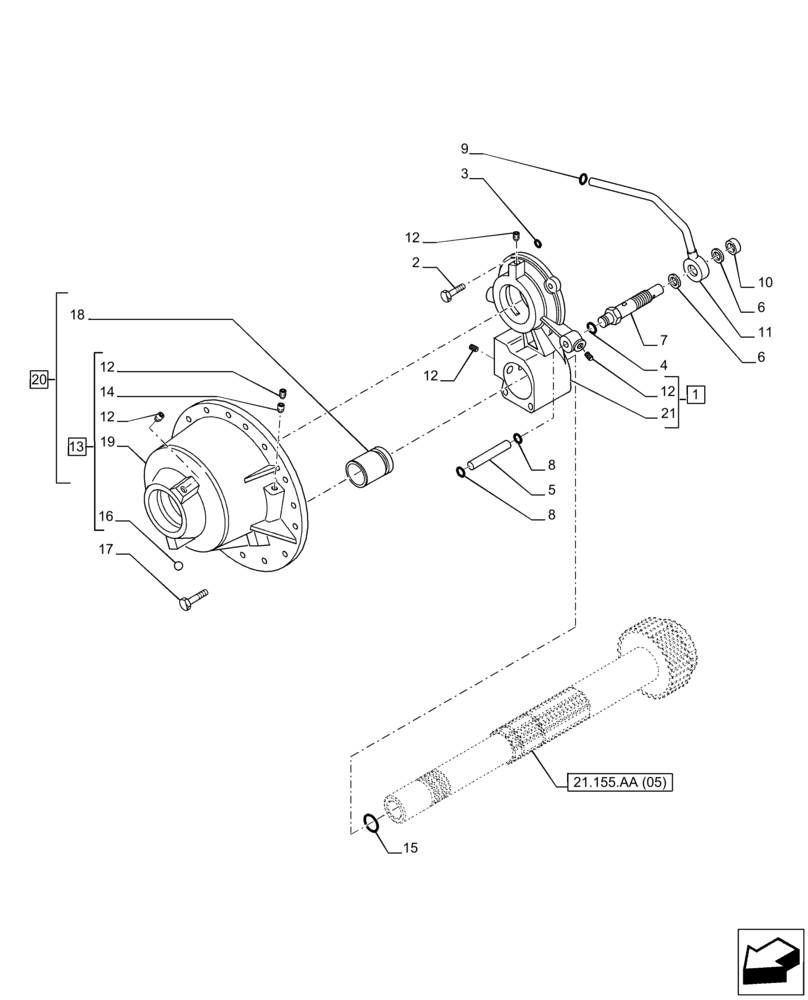

Запчасти Case IH PUMA 185 (21.155.AA[01]) - VAR - 337426, 337428, 337429, 337430, 337431, 337432, 391137, 758017, 758018, 758019, 758020, 758021 - TRANSMISSION, FRONT COVER, MANIFOLD (21) - TRANSMISSION

1

87611992

MANIFOLD

ASSY, Incl 12 (Q.ty 5)

1шт.

2

47526495

PREV TORQUE BOLT,Hex, M8 x 1.25 x 30mm L, Cl 8.8

6шт.

3

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

4шт.

4

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

5

5178212

TUBE,97mm L

1шт.

6

10261860

COPPER WASHER,22.3mm ID x 30mm OD x 1.5mm Thk

2шт.

7

5183121

HYD CONNECTOR

1шт.

8

14457281

O-RING,0.612" ID x 0.103" Width

2шт.

9

5172342

O-RING,0.139" Thk x 0.609" ID, -208, 70 Duro

1шт.

10

5164984

SPACER,22.3mm ID x 30mm OD x 7.5mm L

1шт.

11

5186710

TUBE

1шт.

12

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

7шт.

13

87499428

COVER

ASSY, Incl 12 (Q.ty 2),14,16,19

1шт.

14

5183149

ORIFICE,M12 x 1.25 x 8mm ID x 20mm L

1шт.

15

5185502

PISTON RING,28.5mm ID x 32mm OD x 2.1mm Thk

SEALRING

1шт.

16

20063460

BALL,7.14mm OD, Gr 100

1шт.

17

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

M8 x 1.25 x 35, 8.8

10шт.

18

5171880

TUBE

1шт.

19

NSS

NOT SOLD SEPARAT

Housing, Incl in 13

1шт.

20

84134779

COVER

ASSY, Incl 13, 18

1шт.

21

NSS

NOT SOLD SEPARAT

Manifold, Incl in 1

1шт.
