Запчасти Case IH PUMA 185 (90.151.AP[02]) - VAR - 335475, 335476, 335477, 335478 - ARMREST, HOUSING & COVERS (MHR) (90) - PLATFORM, CAB, BODYWORK AND DECALS

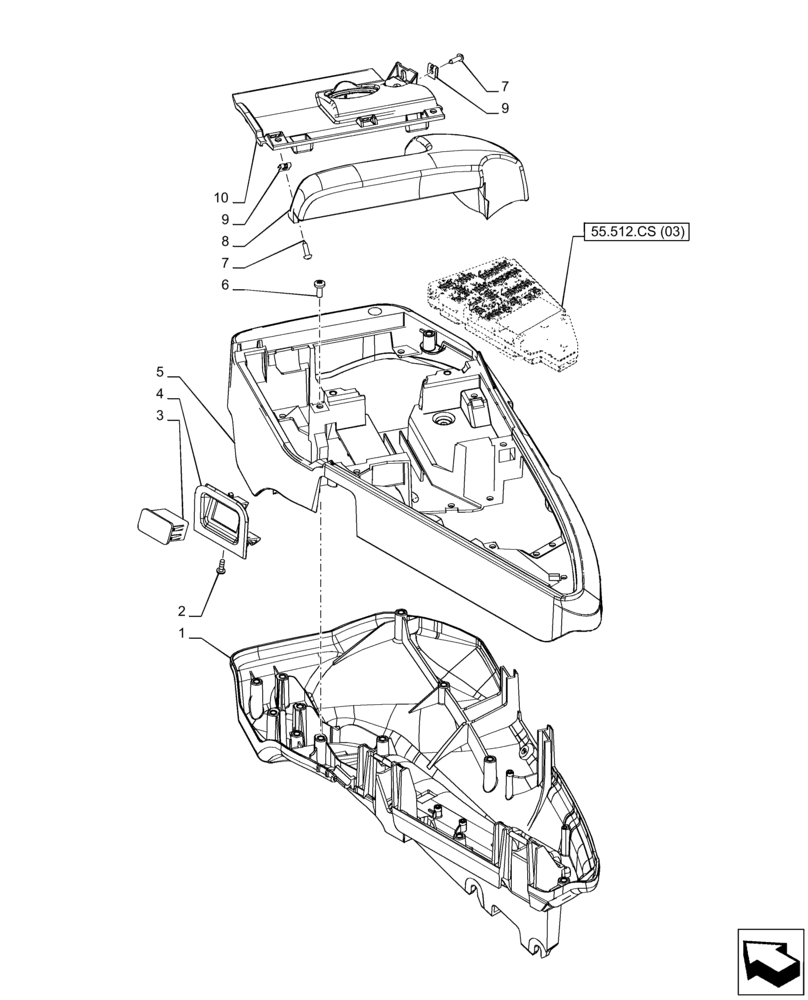

Схема запчастей Case IH PUMA 185 - (90.151.AP[02]) - VAR - 335475, 335476, 335477, 335478 - ARMREST, HOUSING & COVERS (MHR) (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
6
8
7
7
3
55.512.cs (03)
2
4
9
5
9
1

Артикул

Название

Примечание

Количество

1

47510300

SHELL

Lower, Less EHR

1шт.

2

82016959

SCREW,M3.5 x 12mm

1шт.

3

82022763

PLUG

1шт.

4

84150714

BEZEL

For Armrest Adjustment Switch

1шт.

5

84150725

SHELL

Less EHR

1шт.

6

13276217

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

6шт.

7

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

3шт.

8

87493863

HOLDER

Less EHR

1шт.

9

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

3шт.

10

84171966

PANEL

Less EHR

1шт.

Выбрано товаров: 10
