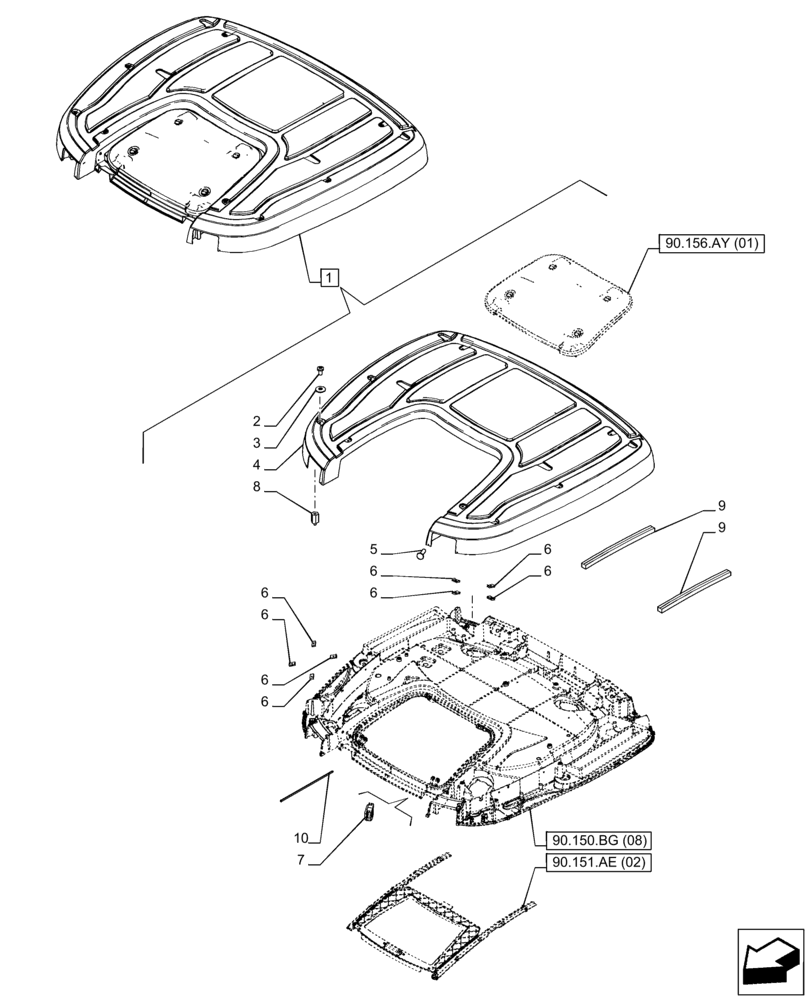

Запчасти Case IH PUMA 185 (90.150.BG[07]) - VAR - 758139, 758141, 758143, 758146 - CAB ROOF, W/ HIGH VISIBILITY PANEL, COMPONENTS (ISO MARKET PACKAGE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

NS

NOT SERVICED

Roof ASSY, ISO, Red, With High Visibility Window, Order Components, Incl 2 - 10

1шт.

2

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

8шт.

3

82038791

BRACKET

8шт.

4

84316056

ROOF

With High Visibility Window

1шт.

5

82034112

SELF-TAP SCREW,Pan, M3 x 10mm

12шт.

6

81872135

NUT,Retaining, M4.20

16шт.

7

87537655

GROMMET,14mm ID x 36mm OD, Rubber, Black

1шт.

8

82034114

SPACER,M6 x 25mm L

M6, 25mm

8шт.

9

82035600

GASKET

Outer Skin Roof

2шт.

10

82032314

SEAL,for High Visibility Window

1шт.
