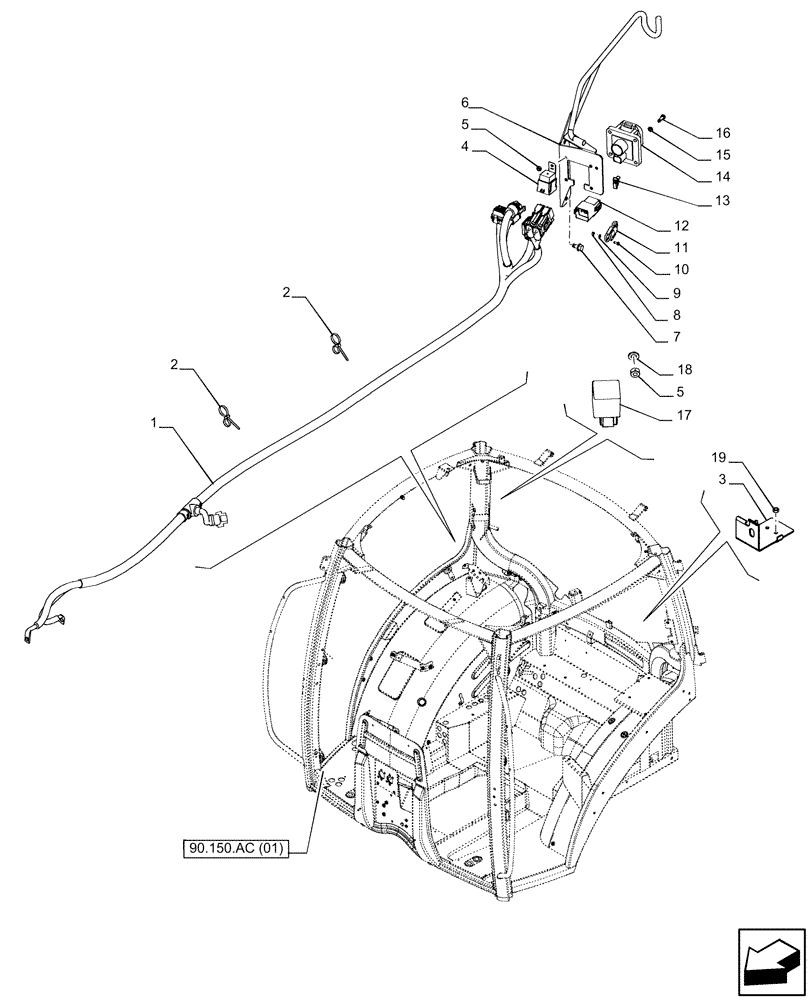

Запчасти Case IH PUMA 185 (55.640.BH) - VAR - 758376 - HARNESS, REAR, ISOBUS (55) - ELECTRICAL SYSTEMS

1

47631726

WIRE HARNESS

1шт.

2

82013031

CABLE TIE,193mm L

4шт.

3

47650331

BRACKET

1шт.

4

82017871

RELAY,12V, 20A

1шт.

5

15896211

NUT,M6, Cl 8

5шт.

6

47588647

SUPPORT

1шт.

7

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

8

412267

NUT,M4, Cl 8

4шт.

9

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

10

385683

BOLT,M4 x 0.7 x 12.92mm, Cl 8.8

4шт.

11

47588681

FUSE HOLDER

1шт.

12

84271717

RELAY,12V, 50A

1шт.

13

84386626

WIRE CONNECTOR

1шт.

14

87522416

ELEC CONNECTOR,Female, 5 Cavities

Rear

1шт.

15

10571579

LOCK WASHER,M6

4шт.

16

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

4шт.

17

84577117

RELAY,12V, 2A

1шт.

18

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

19

14059211

FLANGE NUT,M6 x 1, Flg, Cl 8

2шт.
