Запчасти Case IH PUMA 165 (55.512.CQ[06]) - VAR - 758667 - SEAT, AIR SUSPENSION, ACTIVE LEATHER COMFORT PACK EHR, AIR COMPRESSOR, SENSOR (55) - ELECTRICAL SYSTEMS

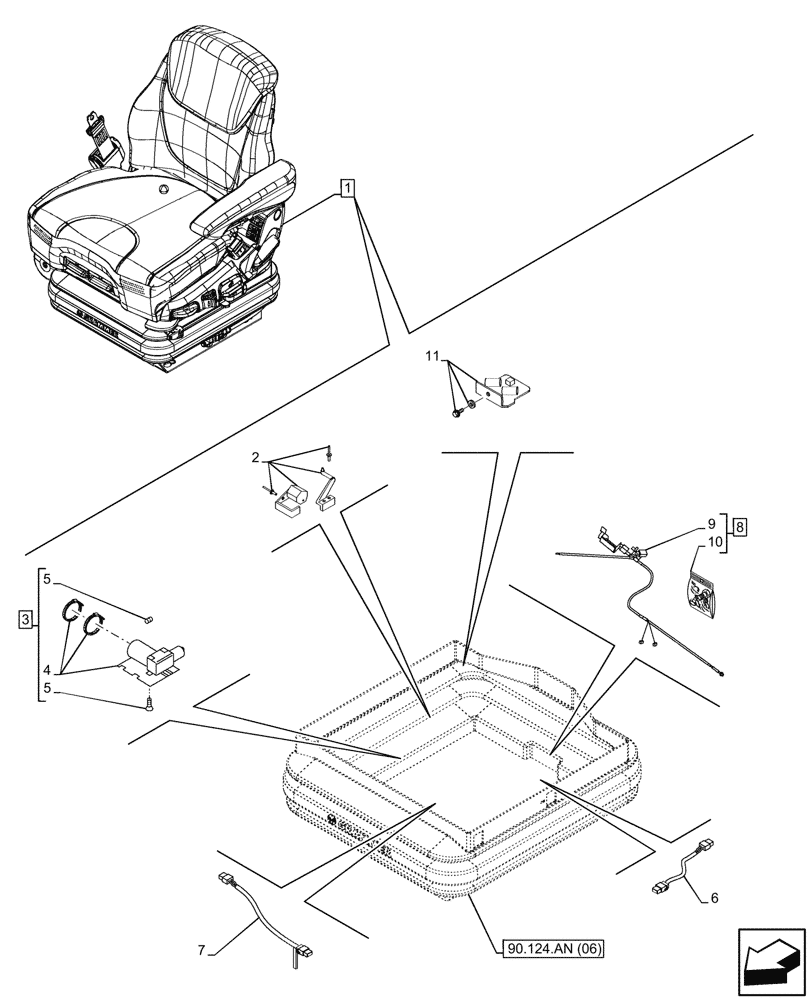

Схема запчастей Case IH PUMA 165 - (55.512.CQ[06]) - VAR - 758667 - SEAT, AIR SUSPENSION, ACTIVE LEATHER COMFORT PACK EHR, AIR COMPRESSOR, SENSOR (55) - ELECTRICAL SYSTEMS
90.124.an (06)
10
5
9
4
1
2
8
3
6
5
7
11

Артикул

Название

Примечание

Количество

1

47544026

DRIVER SEAT

ASSY, Pasubio Verona Scarlet, Active Leather Comfort Pack EHR, Incl 2 - 11

1шт.

2

47897028

SERVICE KIT

1шт.

3

47897054

SERVICE KIT

ASSY, Incl 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Compressor, Incl in 3

1шт.

5

47897053

SERVICE KIT

1шт.

6

84302174

CABLE

1шт.

7

47897059

WIRE HARNESS

1шт.

8

47897031

WIRE HARNESS

ASSY, Incl 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Harness, Incl in 9

1шт.

10

47897055

SERVICE KIT

1шт.

11

47897029

SERVICE KIT

1шт.

Выбрано товаров: 11
