(55.512.CQ[01]) - VAR - 758666 - SEAT, AIR SUSPENSION, DELUXE LEATHER COMFORT PACK MHR, AIR COMPRESSOR, SENSOR

Запчасти Case IH PUMA 165 (55.512.CQ[01]) - VAR - 758666 - SEAT, AIR SUSPENSION, DELUXE LEATHER COMFORT PACK MHR, AIR COMPRESSOR, SENSOR (55) - ELECTRICAL SYSTEMS

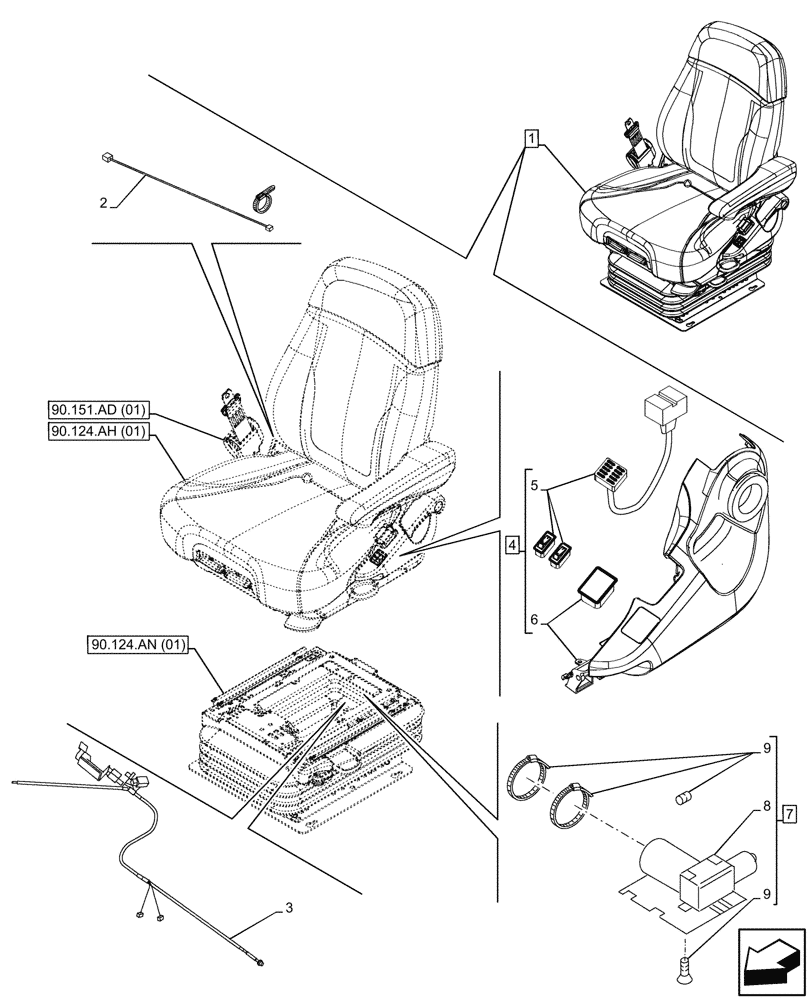

Схема запчастей Case IH PUMA 165 - (55.512.CQ[01]) - VAR - 758666 - SEAT, AIR SUSPENSION, DELUXE LEATHER COMFORT PACK MHR, AIR COMPRESSOR, SENSOR (55) - ELECTRICAL SYSTEMS
90.124.ah (01)
9
2
1
5
8
4
6
9
7
3
90.124.an (01)
90.151.ad (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47544017

DRIVER SEAT

ASSY, Leather Paubio Verona Scarlet, Deluxe Comfort Pack MHR, Incl 2 - 9

1шт.

2

47891438

WIRE HARNESS

1шт.

3

47891532

WIRE HARNESS

1шт.

4

47891436

HEATER

ASSY, Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Seat Heating, Incl in 4

1шт.

6

47891411

COVER

1шт.

7

84190980

AIR COMPRESSOR

ASSY, Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Air Compressor, Incl in 7

1шт.

9

84191008

REPAIR KIT

1шт.
