(55.512.BL[02]) - VAR - 391180, 758147, 758148, 758150 - ARMREST, CONTROL UNIT, MULTIFUNCTION SWITCH

Запчасти Case IH PUMA 165 (55.512.BL[02]) - VAR - 391180, 758147, 758148, 758150 - ARMREST, CONTROL UNIT, MULTIFUNCTION SWITCH (55) - ELECTRICAL SYSTEMS

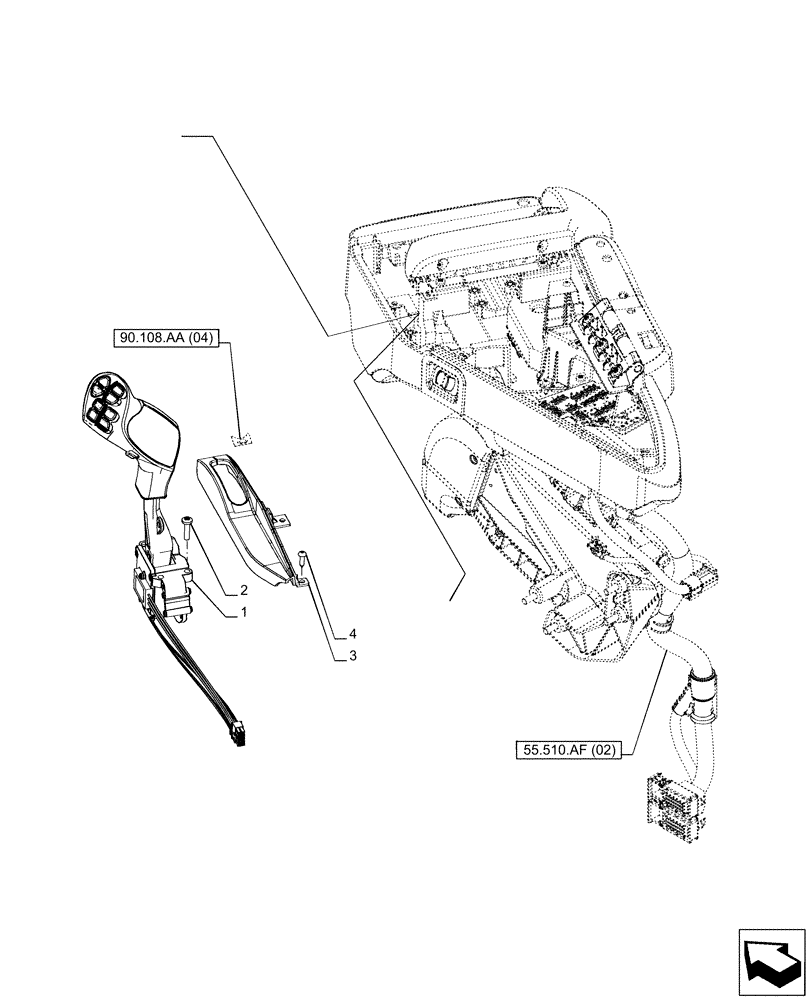

Схема запчастей Case IH PUMA 165 - (55.512.BL[02]) - VAR - 391180, 758147, 758148, 758150 - ARMREST, CONTROL UNIT, MULTIFUNCTION SWITCH (55) - ELECTRICAL SYSTEMS
55.510.af (02)
1
4
3
2
90.108.aa (04)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84596604

JOYSTICK

Multifunctional Handle, Powershift

1шт.

1

84596604R

REMAN-JOYSTICK

Multifunctional Handle, Powershift

1шт.

1

84596604C

CORE-JOYSTICK

Return Number

1шт.

2

13276621

SCREW,Pozidriv Pan Hd, M6 x 25mm, Cl 8.8, Full Thd

4шт.

3

84122981

BEZEL

Throttle, Powershift

1шт.

4

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

4.8 x 19

2шт.
