Запчасти Case IH PUMA 165 (55.510.AF[02]) - CAB, MAIN HARNESS (55) - ELECTRICAL SYSTEMS

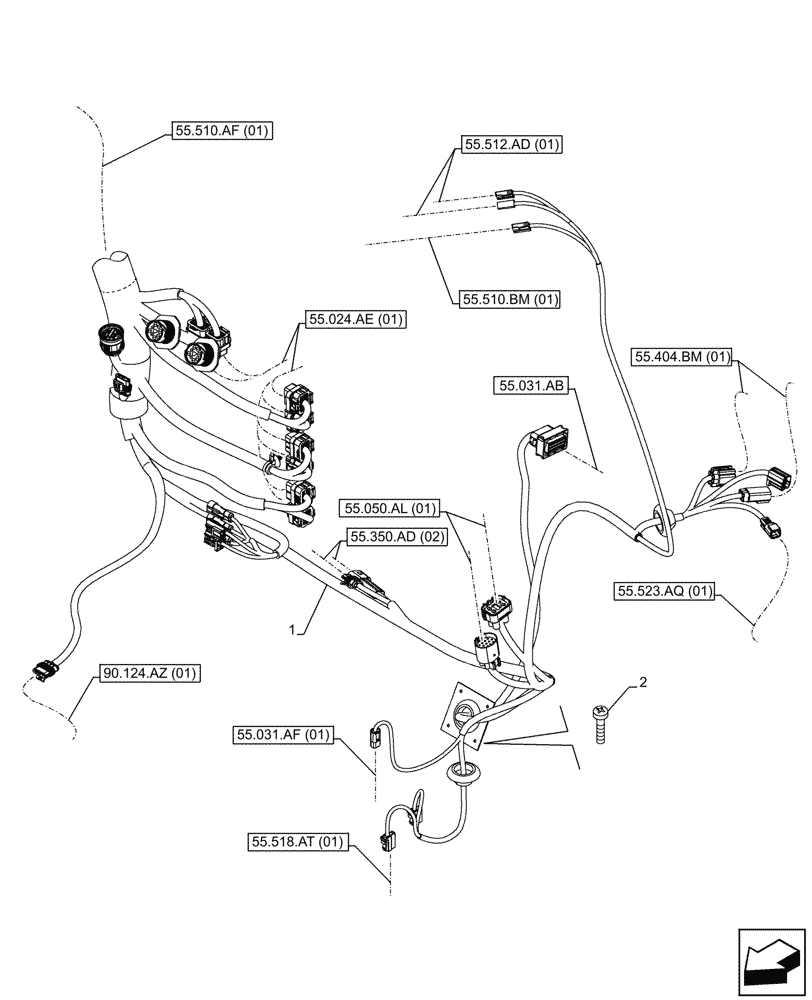

Схема запчастей Case IH PUMA 165 - (55.510.AF[02]) - CAB, MAIN HARNESS (55) - ELECTRICAL SYSTEMS
55.512.ad (01)
90.124.az (01)
1
2
55.350.ad (02)
55.031.ab
55.518.at (01)
55.404.bm (01)
55.050.al (01)
55.024.ae (01)
55.523.aq (01)
55.031.af (01)
55.510.bm (01)
55.510.af (01)

Артикул

Название

Примечание

Количество

1

47754421

WIRE HARNESS

Cab Main Harness

1шт.

2

15903804

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 13mm

4шт.

Выбрано товаров: 2
