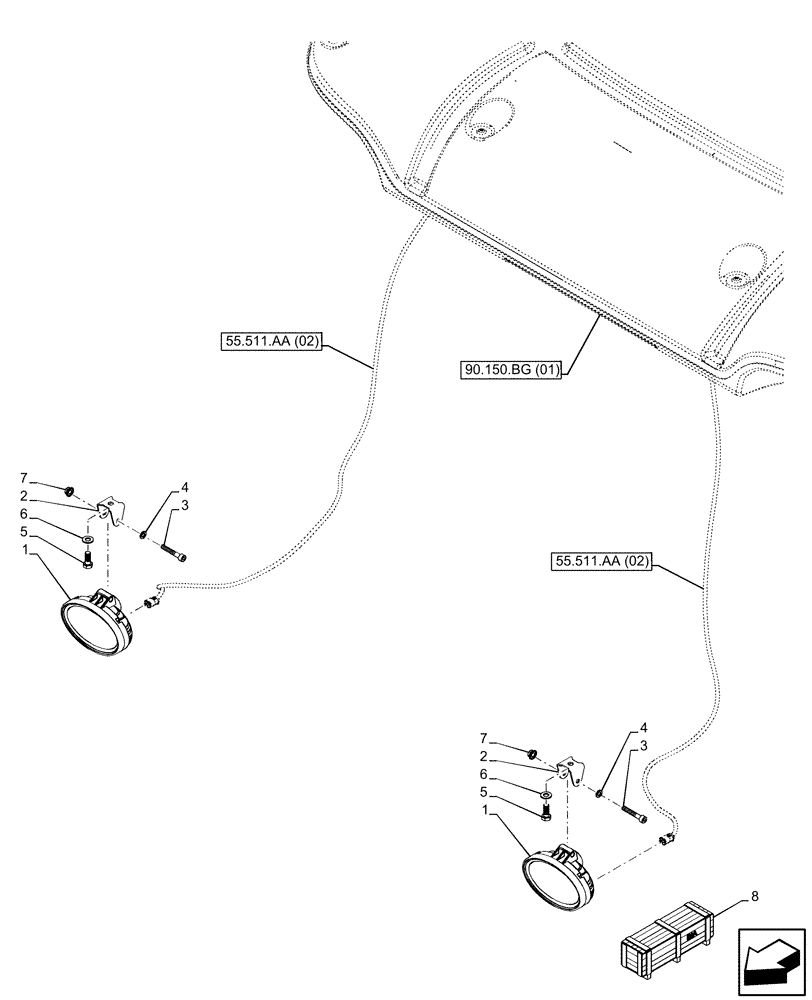

Запчасти Case IH PUMA 165 (55.404.BS[08]) - VAR - 758967 - LED WORK LAMP, FRONT, LOWER (55) - ELECTRICAL SYSTEMS

1

47677856

HEADLAMP,20W

Front Lower

2шт.

2

47732510

BRACKET

2шт.

3

14306924

HEX SOC SCREW,M8 x 1.25 x 50mm, Cl 8.8

2шт.

4

10571774

LOCK WASHER,8.1mm ID x 14.8mm OD x 2mm Thk

2шт.

5

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

6

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

7

13046211

NUT,Flange Hex, M8

2шт.

8

710768094

DIA KIT, TRACTOR

2X Additional Worklight for Under Sidelight, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
