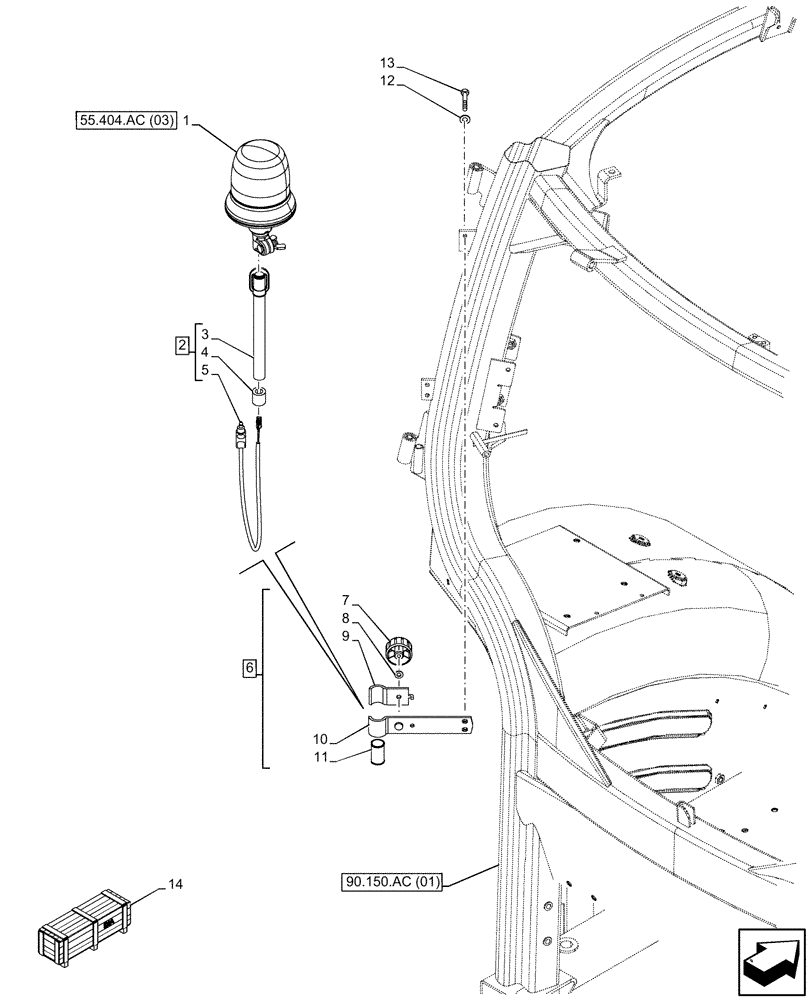

Запчасти Case IH PUMA 165 (55.404.AC[02]) - VAR - 758168, 758169 - BEACON, LH (55) - ELECTRICAL SYSTEMS

1

82018390

BEACON,12V, 55W

1шт.

2

87621041

SUPPORT

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Incl in 2

1шт.

4

82027653

SUPPORT

1шт.

5

82027731

WIRE HARNESS

1шт.

6

47497326

BRACKET

ASSY, Incl 7 - 11

1шт.

7

82016257

KNOB

1шт.

8

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

9

82028975

BRACKET

1шт.

10

47497345

BRACKET

1шт.

11

82028965

SLEEVE,24mm ID x 28mm OD x 41.0mm L

1шт.

12

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

13

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

14

718184004

DIA KIT, TRACTOR

Drive Beacon, RH, Incl 1 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
