(55.024.AA[12]) - VAR - 391160 - TRANSMISSION, HARNESS, LESS EHRS AND ISOBUS

Запчасти Case IH PUMA 165 (55.024.AA[12]) - VAR - 391160 - TRANSMISSION, HARNESS, LESS EHRS AND ISOBUS (55) - ELECTRICAL SYSTEMS

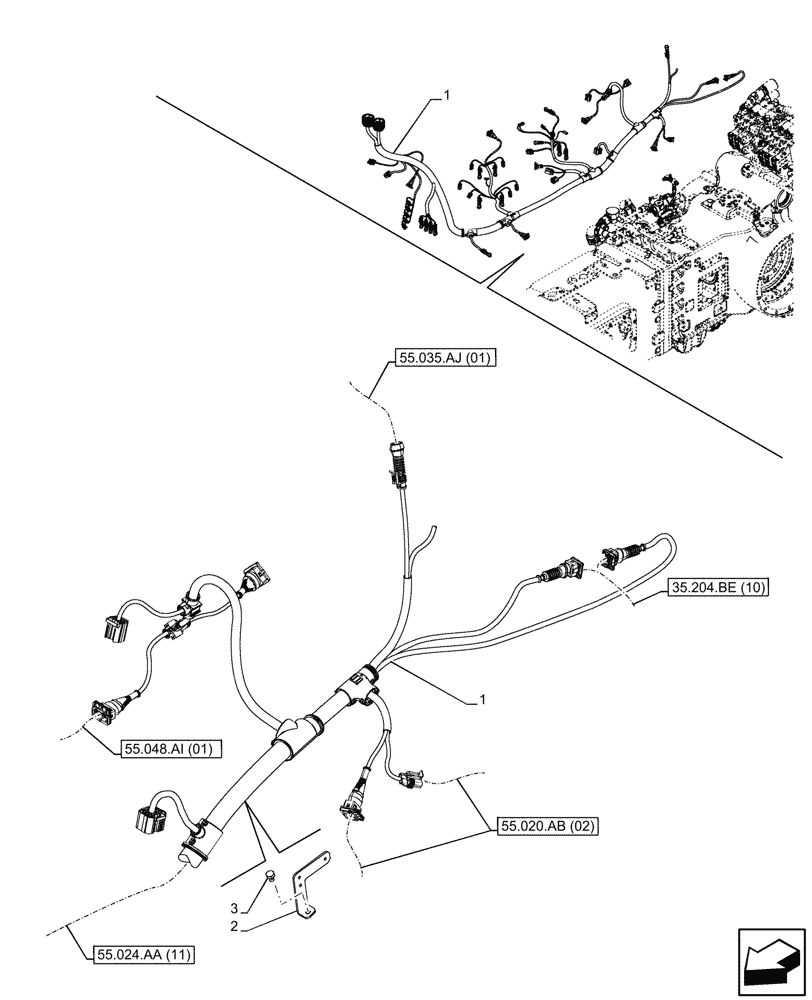

Схема запчастей Case IH PUMA 165 - (55.024.AA[12]) - VAR - 391160 - TRANSMISSION, HARNESS, LESS EHRS AND ISOBUS (55) - ELECTRICAL SYSTEMS
55.048.ai (01)
3
1
1
2
55.024.aa (11)
55.020.ab (02)
35.204.be (10)
55.035.aj (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84387581

WIRE HARNESS

Transmission Harness

1шт.

2

87620213

BRACKET

1шт.

3

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.
