(55.024.AA[09]) - VAR - 391160 - TRANSMISSION, HARNESS, PWS, W 110 L/MIN CHARGE PUMP

Запчасти Case IH PUMA 165 (55.024.AA[09]) - VAR - 391160 - TRANSMISSION, HARNESS, PWS, W 110 L/MIN CHARGE PUMP (55) - ELECTRICAL SYSTEMS

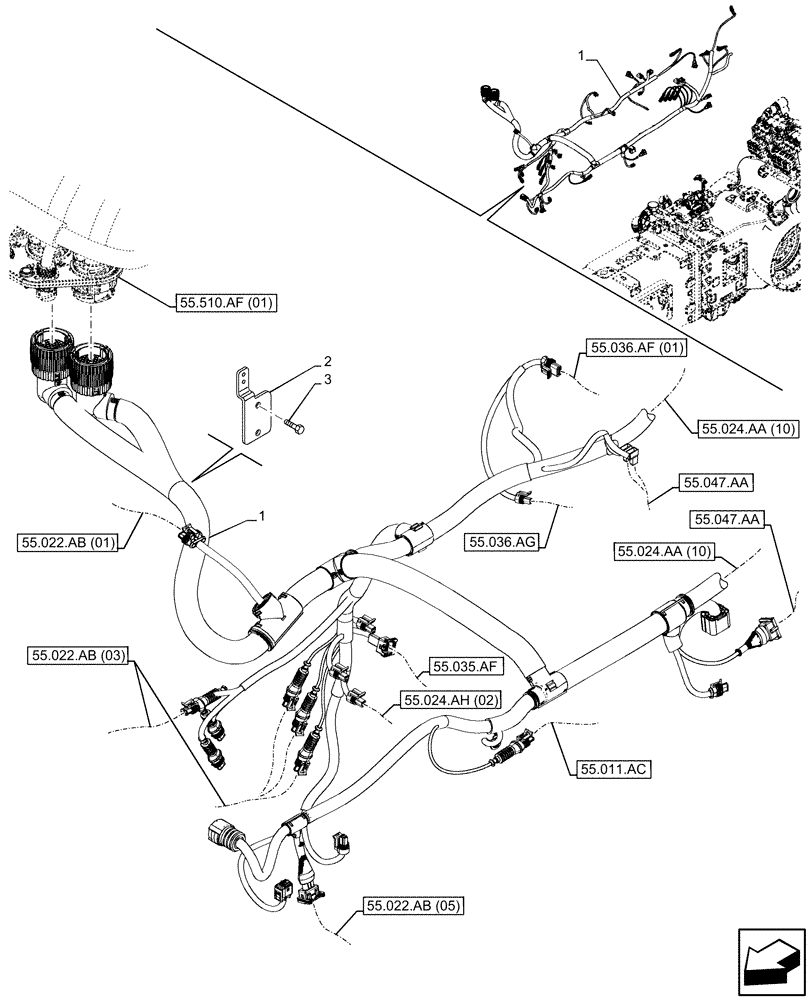

Схема запчастей Case IH PUMA 165 - (55.024.AA[09]) - VAR - 391160 - TRANSMISSION, HARNESS, PWS, W 110 L/MIN CHARGE PUMP (55) - ELECTRICAL SYSTEMS
55.047.aa
1
1
3
2
55.510.af (01)
55.036.ag
55.022.ab (05)
55.022.ab (03)
55.024.aa (10)
55.024.aa (10)
55.024.ah (02)
55.036.af (01)
55.022.ab (01)
55.011.ac
55.035.af
55.047.aa
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84387579

WIRE HARNESS

Transmission Harness

1шт.

2

87624046

BRACKET

1шт.

3

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.
