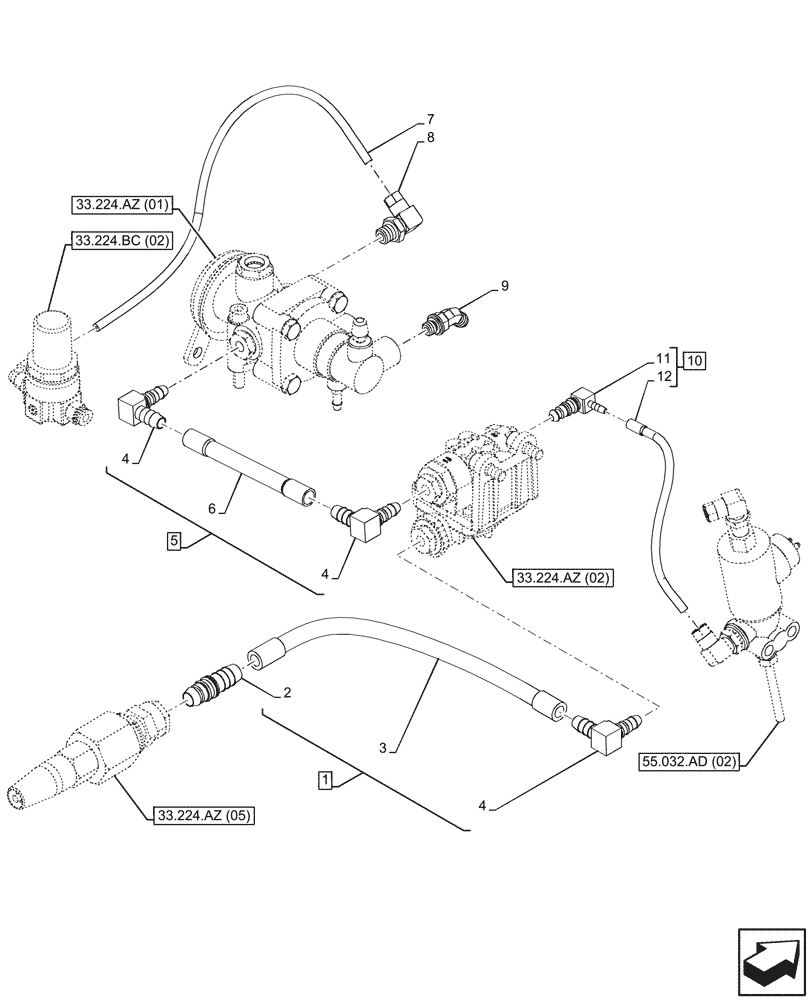

Запчасти Case IH PUMA 165 (33.224.AZ[04]) - VAR - 758038, 758039, 758043, 758044 - PNEUMATIC TRAILER BRAKE, PIPE (33) - BRAKES & CONTROLS

1

84233103

FLEXIBLE HOSE,12.00mm OD x 265.00mm

ASSY, Incl 2 - 4

1шт.

2

87588082

HYD CONNECTOR,M12 x 1.5

1шт.

3

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

4

87588080

90 ELBOW,NG8 x 12mm D

3шт.

5

84157672

FLEXIBLE HOSE,12.00mm OD x 123.00mm

ASSY, Incl 4, 6

1шт.

6

NSS

NOT SOLD SEPARAT

Tube, Incl in 5

1шт.

7

84358817

HOSE,6.00mm OD x 652.00mm L

1шт.

8

87678126

ELBOW,Hex, M12 x 1.4 x 28mm

1шт.

9

87588084

HYD CONNECTOR,M10 x 1

1шт.

10

84358479

HYD TUBE,6.00mm OD x 193.00mm

ASSY, Incl 11, 12

1шт.

11

82036158

ELBOW,9.1mm OD x 31.5mm, 6x1Tube

1шт.

12

NSS

NOT SOLD SEPARAT

Tube, Incl in 10

1шт.
