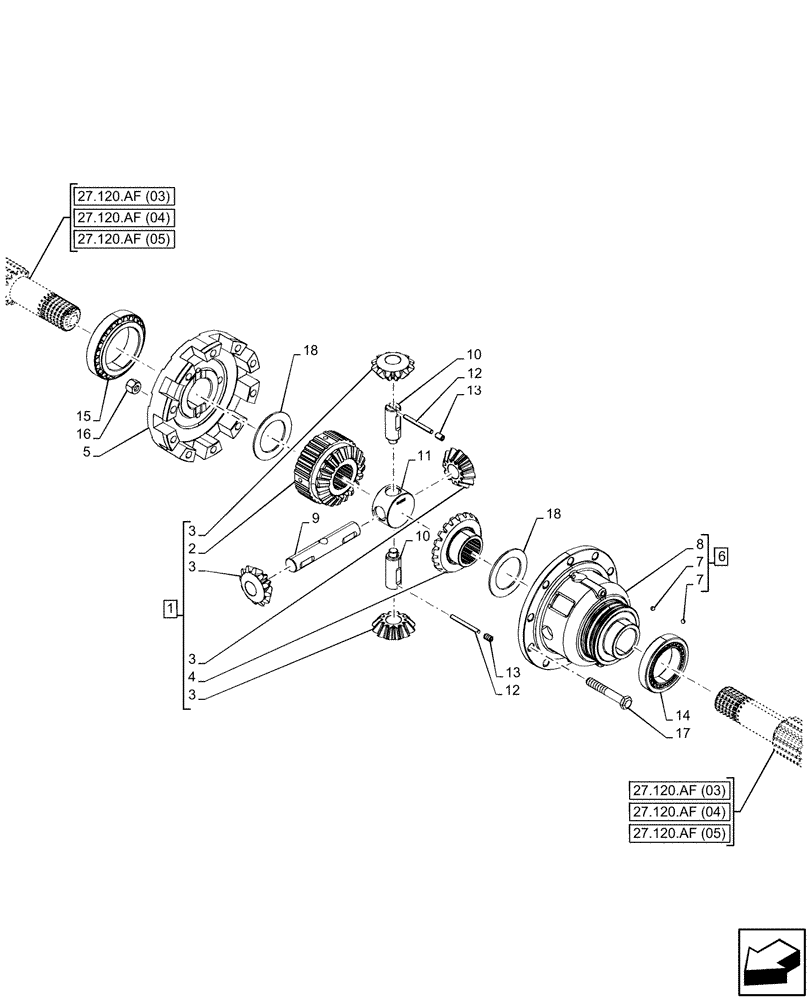

Запчасти Case IH PUMA 165 (27.106.AC[01]) - VAR - 391158, 758052, 758053 - REAR AXLE, DIFFERENTIAL (27) - REAR AXLE SYSTEM

1

87490100

DIFFERENTIAL

ASSY, Incl 2 - 4

1шт.

2

5162545

PINION,20T

RH

1шт.

3

5139597

PINION,12T

4шт.

4

5162573

PINION,18T, 20T

LH

1шт.

5

5162543

COVER

1шт.

6

5162542

HOUSING

ASSY, Incl 7, 8

1шт.

7

20063460

BALL,7.14mm OD, Gr 100

2шт.

8

5162541

BOX

1шт.

9

47131259

PIN,27.96mm OD x 164mm L

1шт.

10

47131260

PIN,27.96mm OD x 78mm L

2шт.

11

5150729

SUPPORT

1шт.

12

14516720

DOWEL,M7 x 70

2шт.

13

13809470

SET SCREW,Hex Soc, M10 x 16mm, Flat Pt

2шт.

14

24903470

BEARING ASSY,70mm ID x 110mm OD x 25mm W

1шт.

15

24903500

TAPERED BEARING,85mm ID x 130mm OD x 29mm W

1шт.

16

13598221

NUT,M14 x 1.5

10шт.

17

5163988

BOLT,Hex, M14 x 1.5 x 93mm

10шт.

18

5135398

THRUST WASHER,64mm ID x 95mm OD x 2.95mm Thk

2шт.

18

5135400

THRUST WASHER,64mm ID x 95mm OD x 3.05mm Thk

1шт.

18

5135403

THRUST WASHER,64mm ID x 95mm OD x 3.2mm Thk

1шт.

18

5135404

THRUST WASHER,64mm ID x 95mm OD x 3.25mm Thk

1шт.

18

5135402

THRUST WASHER,64mm ID x 95mm OD x 3.15mm Thk

1шт.

18

5135401

THRUST WASHER,64mm ID x 95mm OD x 3.1mm Thk

1шт.

18

5178543

THRUST WASHER,64mm ID x 95mm OD x 2.75mm Thk

1шт.

18

5138804

THRUST WASHER,64mm ID x 95mm OD x 2.85mm Thk

1шт.

18

5138805

THRUST WASHER,64mm ID x 95mm OD x 2.9mm Thk

1шт.

18

5178542

THRUST WASHER,64mm ID x 95mm OD x 2.7mm Thk

1шт.

18

5138803

THRUST WASHER,64.00mm ID x 95.00mm OD x 2.80mm

1шт.

18

5135405

THRUST WASHER,64mm ID x 95mm OD x 3.3mm Thk

1шт.

18

44011235

THRUST WASHER,64mm ID x 95mm OD x 3mm Thk

1шт.

18

5189651

THRUST WASHER,64.00mm ID x 95.00mm OD x 3.50mm

1шт.

18

5189649

THRUST WASHER,64.00mm ID x 95.00mm OD x 3.40mm

1шт.

18

5189650

THRUST WASHER,64.00mm ID x 95.00mm OD x 3.45mm

1шт.

18

5189648

THRUST WASHER,64.00mm ID x 95.00mm OD x 3.35mm

1шт.
