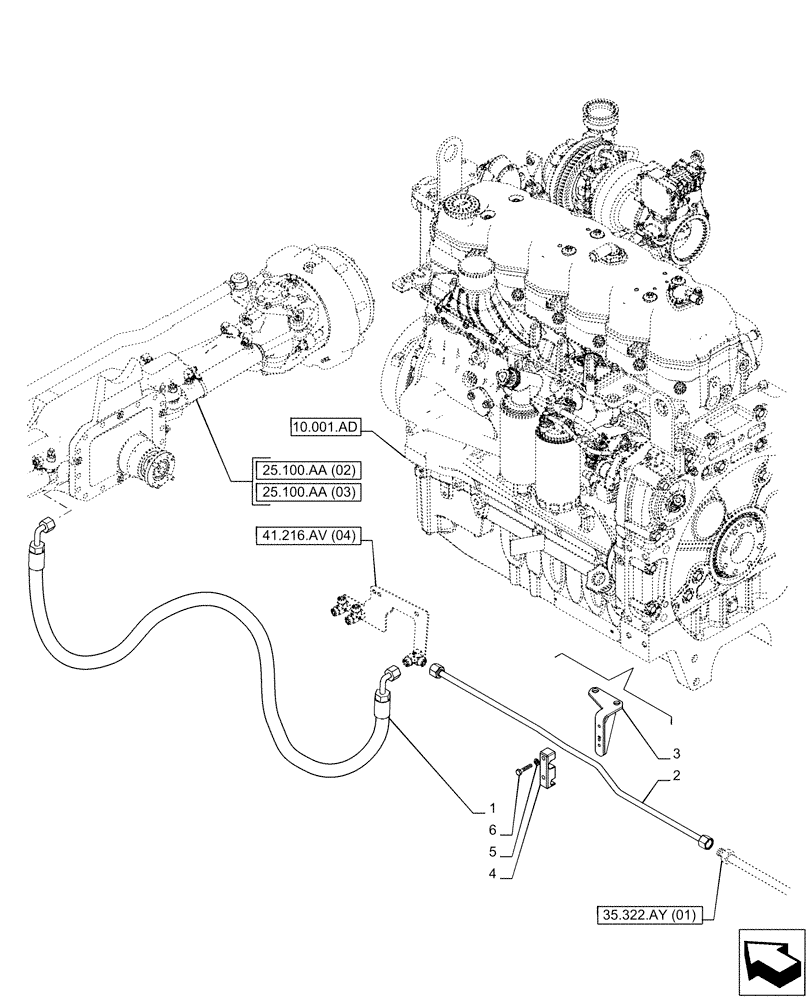

Запчасти Case IH PUMA 165 (25.102.AT[03]) - VAR - 758045, 758046 - SUSPENDED FRONT AXLE, DIFFERENTIAL LOCK, LINE (25) - FRONT AXLE SYSTEM
![Схема запчастей Case IH PUMA 165 - (25.102.AT[03]) - VAR - 758045, 758046 - SUSPENDED FRONT AXLE, DIFFERENTIAL LOCK, LINE (25) - FRONT AXLE SYSTEM](https://partsell.ru/storage/images/caseih/5364503.png)
25.100.aa (03)
1
2
6
5
4
3
25.100.aa (02)
41.216.av (04)
35.322.ay (01)
10.001.ad
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
82036783
FLEXIBLE HOSE,9.53mm ID x 580mm L, SAE 100R2
Differential Lock
1шт.
2
87533929
TUBE,8 mm ID x 10 mm OD x 776, 500 mm L
Differential Lock
1шт.
3
47475527
BRACKET
1шт.
4
82029228
CLAMP,2 Hoses
1шт.
5
14496401
WASHER,M6.4 x 12.00mm x 1.60mm
2шт.
6
16050621
SCREW,Hex, M6 x 30mm, Cl 8.8, Full Thd
2шт.
Выбрано товаров: 6
