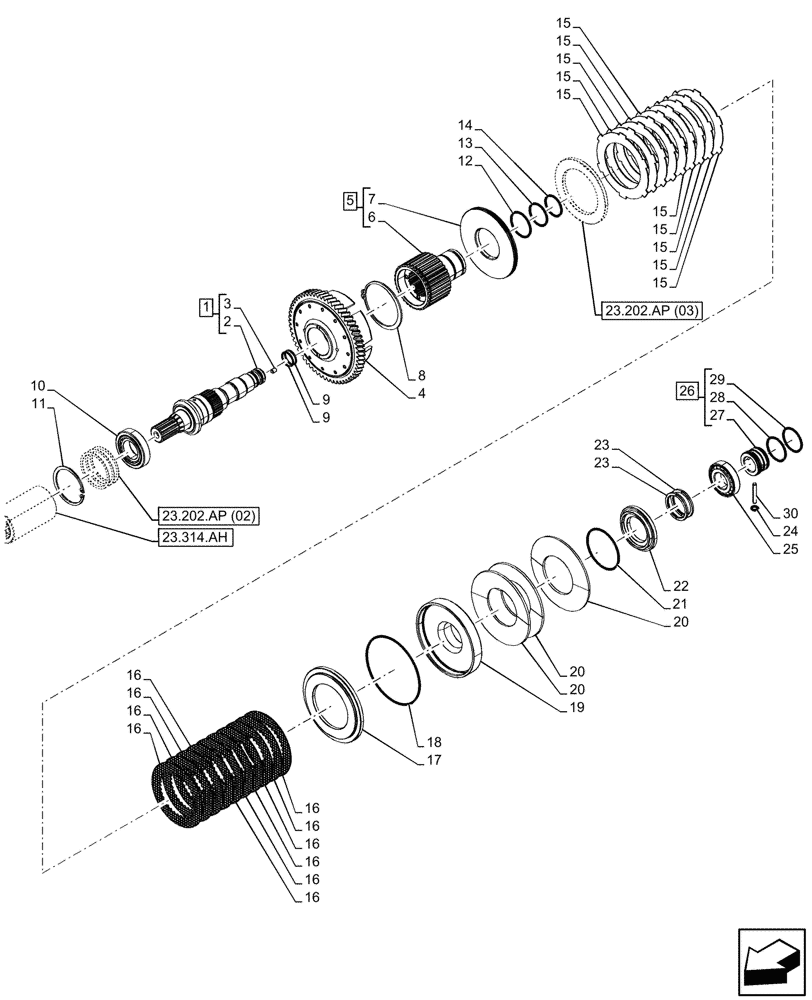

Запчасти Case IH PUMA 165 (23.202.AP[04]) - VAR - 391136, 391351, 758011, 758012, 758013, 758014, 758015, 758016, 758017, 758018, 758019, 758020, 758021 - 4WD ENGAGEMENT CLUTCH CONTROL, POWERSHIFT (23) - FOUR WHEEL DRIVE SYSTEM

1

5183786

SHAFT,287mm L

287mm, ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

3

13789620

SET SCREW,Hex Soc, M8 x 10mm, Flat Pt

1шт.

4

87495765

DRIVING GEAR,Z58

Z 58

1шт.

5

84162193

HUB

ASSY, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Hub, Incl in 5

1шт.

7

5153329

DISC,150mm OD x 65mm ID x 9.5mm Thk

1шт.

8

5139462

SNAP RING,3mm Thk

1шт.

9

5185502

PISTON RING,28.5mm ID x 32mm OD x 2.1mm Thk

2шт.

10

26799960

TAPERED BEARING,40mm ID x 80mm OD x 19.75mm W

1шт.

11

11061976

SNAP RING,M80, Int

1шт.

12

14459480

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

1шт.

13

14459080

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

1шт.

14

14458780

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1шт.

15

84177629

DRIVE PLATE,99mm ID x 152mm OD x 1.5mm Thk

9шт.

16

5163904

DISC

10шт.

17

5153332

PLATE

1шт.

18

14462080

O-RING,0.103" Thk x 5.737" ID, -162, Cl 5, 75 Duro

1шт.

19

5153331

PISTON

1шт.

20

5160408

BELLEVILLE SPRING

3шт.

21

5144584

CIRCLIP

1шт.

22

87488655

THRUST WASHER

1шт.

23

4977442

HALF-RING

2шт.

24

14453080

O-RING,0.426" ID x 0.07"

1шт.

25

26799950

TAPERED BEARING,35mm ID x 72mm OD x 18.25mm W

1шт.

26

87372763

MANIFOLD

ASSY, Incl 27 - 29

1шт.

27

NSS

NOT SOLD SEPARAT

Manifold, Incl in 26

1шт.

28

14459180

O-RING,45.69mm ID x 2.62"

1шт.

29

14458980

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1шт.

30

14516210

DOWEL,M7 x 45

1шт.
