Запчасти Case IH PUMA 165 (21.148.AH[01]) - VAR - 391351, 758011, 758012, 758013, 758014, 758015, 758018, 758019, 758020, 758021 - TRANSMISSION, SPLITTER, CLUTCH (21) - TRANSMISSION

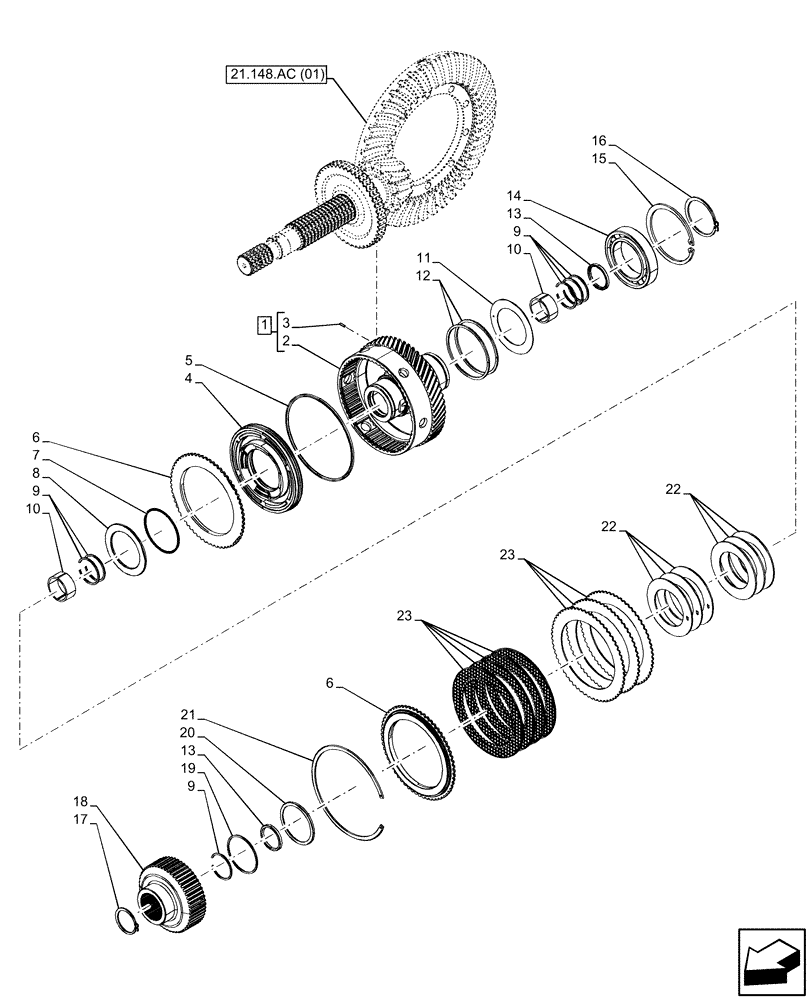

Схема запчастей Case IH PUMA 165 - (21.148.AH[01]) - VAR - 391351, 758011, 758012, 758013, 758014, 758015, 758018, 758019, 758020, 758021 - TRANSMISSION, SPLITTER, CLUTCH (21) - TRANSMISSION
21.148.ac (01)
14
23
23
7
2
13
12
18
9
3
1
21
11
15
6
10
19
16
22
8
5
20
22
9
13
17
9
10
4
6

Артикул

Название

Примечание

Количество

1

87718795

BELL HOUSING

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Clutch, Incl in 1

1шт.

3

14161470

LOCK PIN,M3 x 10, Slotted

1шт.

4

87547824

PISTON

1шт.

5

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

1шт.

6

5167824

DISC,113.5mm ID x 154.35mm OD x 7.5mm Thk

2шт.

7

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

8

87547826

RING,61mm ID x 84.95mm OD x 3mm Thk

1шт.

9

5124473

SNAP RING,1.5mm Thk, Int

6шт.

10

87308922

NEEDLE BEARING,35mm ID x 42mm OD x 18mm W

2шт.

11

87593180

THRUST BEARING,61mm ID x 89.5mm OD x 1mm Thk

1шт.

12

5131232

OIL SCRAPER RING,Split, 83.02mm ID x 90mm OD x 2.22mm Thk

2шт.

13

87308921

GASKET,4mm Thk, 42mm OD

2шт.

14

87594023

BALL BEARING,60 mm ID x 95 mm OD x 18 mm

1шт.

15

11062676

SNAP RING,M95, Int

1шт.

16

11069876

SNAP RING,M60, Ext

1шт.

17

11068876

SNAP RING,M40, Ext

1шт.

18

87586679

HUB

1шт.

19

5175981

CIRCLIP,1.5mm Thk

1шт.

20

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

1шт.

21

47132979

CIRCLIP,2mm Thk

1шт.

22

87547947

SPRING,Belleville, 60mm ID x 1.9mm Thk

6шт.

23

87596476

CLUTCH PACK

1шт.

Выбрано товаров: 23
