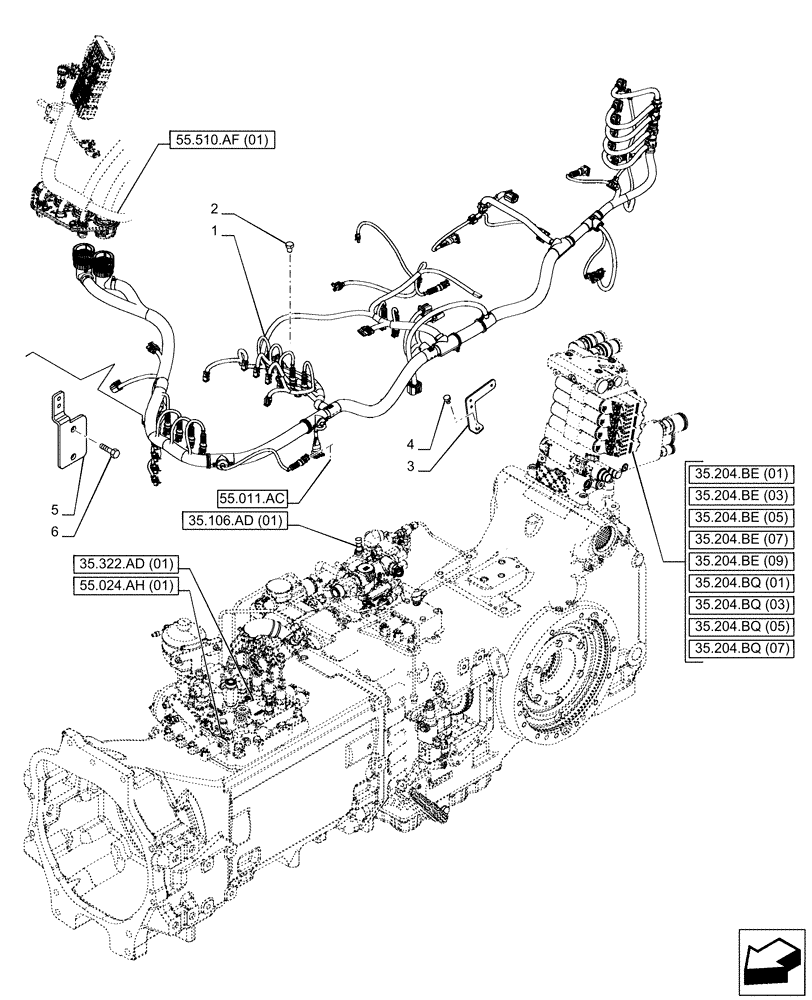

Запчасти Case IH PUMA 165 (55.024.AA[01]) - VAR - 391160 - TRANSMISSION, HARNESS (55) - ELECTRICAL SYSTEMS

1

84387580

WIRE HARNESS

Transmission (for 110 l/Min Pump), Years: -06-FEB-14

1шт.

For Models W/ Semi Powershift Transmission & W/ Electrohydraulic Rear Remotes (Industrial Var. 332471)

1шт.

1

47663808

WIRE HARNESS

Transmission (for 110 l/Min Pump), Start Year: 07-FEB-14

1шт.

For Models W/ Semi Powershift Transmission & W/ Electrohydraulic Rear Remotes (Industrial Var. 332471)

1шт.

1

84387579

WIRE HARNESS

Transmission (for 110 l/Min Pump)

1шт.

For Models W/ Semi Powershift Transmission & W/ Mechanical Rear Remotes (Industrial Var. 392160)

1шт.

1

84387582

WIRE HARNESS

Transmission (for 110 l/Min Pump), Years: -06-FEB-14

1шт.

For Models W/ Full Powershift Transmission & W/ Electrohydraulic Rear Remotes (Industrial Var. 332472)

1шт.

1

47663812

WIRE HARNESS

Transmission (for 110 l/Min Pump), Start Year: 07-FEB-14

1шт.

For Models W/ Full Powershift Transmission & W/ Electrohydraulic Rear Remotes (Industrial Var. 332472)

1шт.

1

84387581

WIRE HARNESS

Transmission (for 110 l/Min Pump)

1шт.

For Models W/ Full Powershift Transmission & W/ Mechanical Rear Remotes (Industrial Var. 332470)

1шт.

2

336199

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

3

87620213

BRACKET

1шт.

4

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

5

87624046

BRACKET

Transmission Harness Support

1шт.

6

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.
