(35.322.AY[13]) - VAR - 758016, 758017, 758018, 758019, 758020, 758021 - TRANSMISSION, LOW PRESSURE, LINE

Запчасти Case IH PUMA 165 (35.322.AY[13]) - VAR - 758016, 758017, 758018, 758019, 758020, 758021 - TRANSMISSION, LOW PRESSURE, LINE (35) - HYDRAULIC SYSTEMS

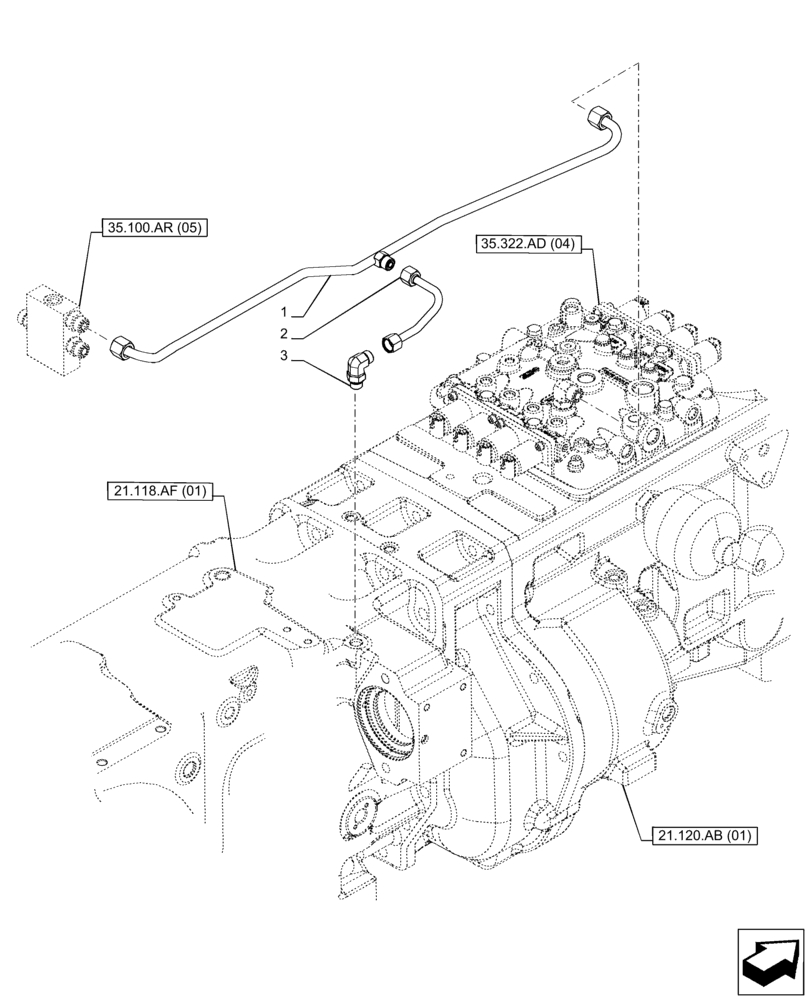

Схема запчастей Case IH PUMA 165 - (35.322.AY[13]) - VAR - 758016, 758017, 758018, 758019, 758020, 758021 - TRANSMISSION, LOW PRESSURE, LINE (35) - HYDRAULIC SYSTEMS
35.100.ar (05)
21.120.ab (01)
1
2
21.118.af (01)
3
35.322.ad (04)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84404478

PIPE

Front Lube

1шт.

2

84404408

PIPE

1шт.

3

84372555

90 ELBOW,11/16"-16 ORFS x M16 x 1.5 ORB

1шт.
