(35.322.AY[10]) - VAR - 758012, 758014, 758016, 758018, 758020 - LOW PRESSURE, LINE

Запчасти Case IH PUMA 165 (35.322.AY[10]) - VAR - 758012, 758014, 758016, 758018, 758020 - LOW PRESSURE, LINE (35) - HYDRAULIC SYSTEMS

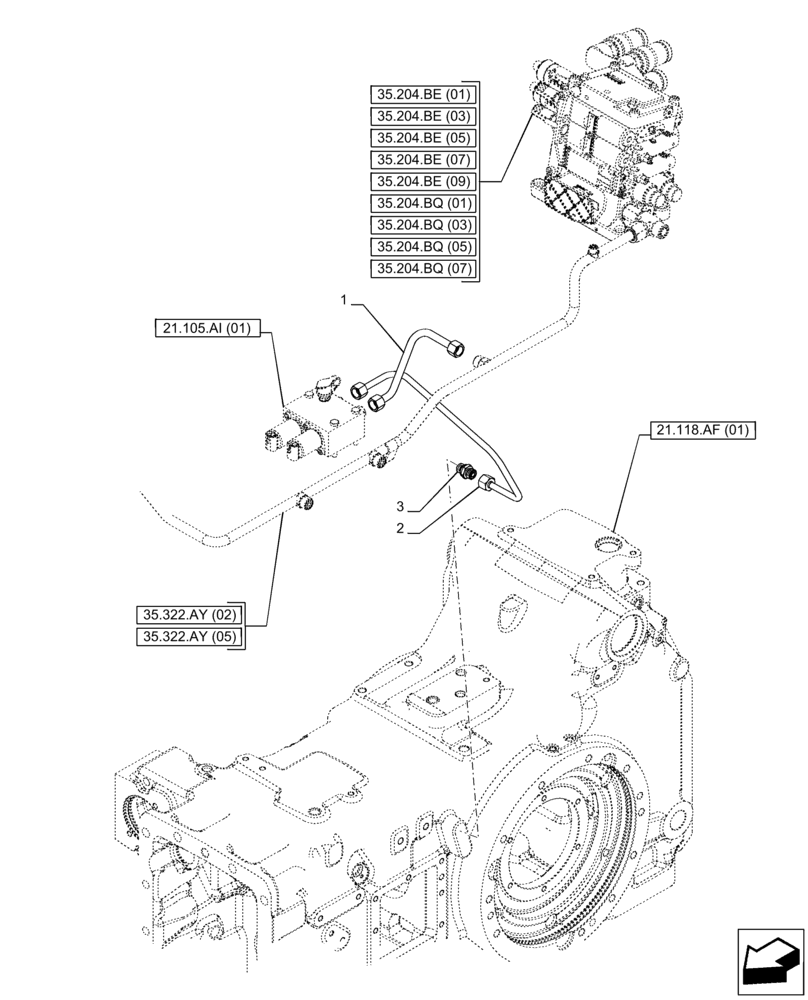

Схема запчастей Case IH PUMA 165 - (35.322.AY[10]) - VAR - 758012, 758014, 758016, 758018, 758020 - LOW PRESSURE, LINE (35) - HYDRAULIC SYSTEMS
2
35.322.ay (05)
21.118.af (01)
1
35.322.ay (02)
21.105.ai (01)
35.204.bq (03)
35.204.be (01)
35.204.be (07)
35.204.bq (05)
35.204.bq (01)
3
35.204.be (03)
35.204.be (05)
35.204.be (09)
35.204.bq (07)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84519127

CAP COVER

Valve

1шт.

2

87519138

PIPE

Lubrification

1шт.

3

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

1шт.

Выбрано товаров: 3
