(35.300.AN[01]) - VAR - 391155, 758037, 758038, 758039, 758040, 758041, 758042, 758043, 758044 - OIL FILTER, POWERSHIFT

Запчасти Case IH PUMA 165 (35.300.AN[01]) - VAR - 391155, 758037, 758038, 758039, 758040, 758041, 758042, 758043, 758044 - OIL FILTER, POWERSHIFT (35) - HYDRAULIC SYSTEMS

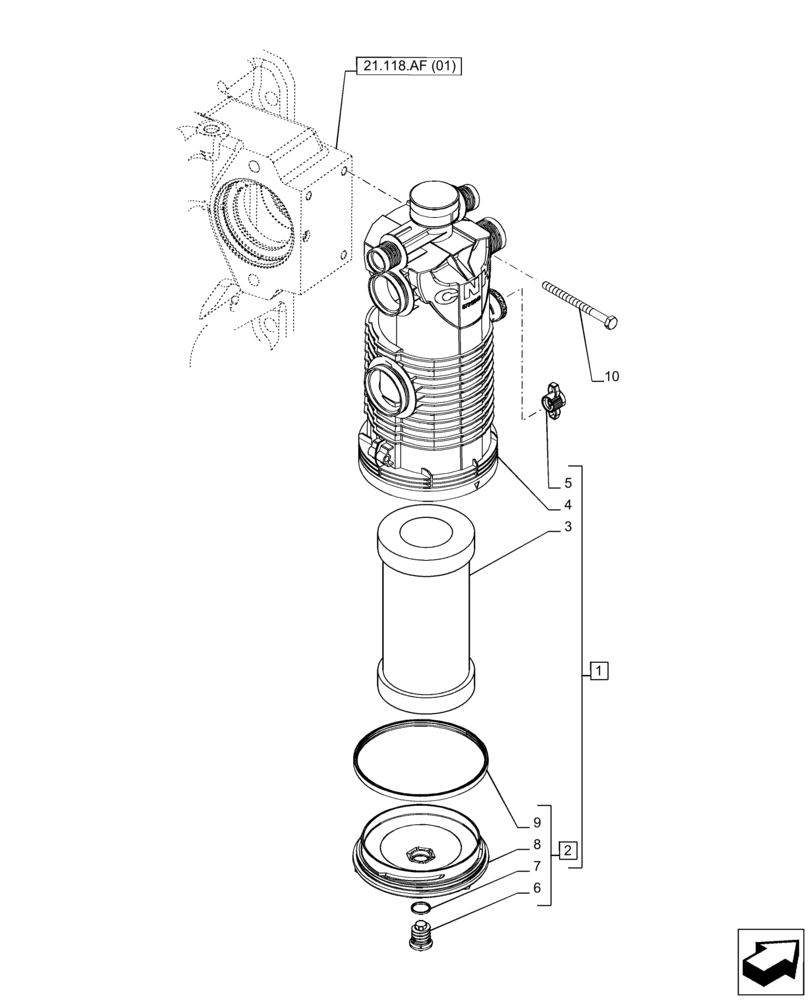

Схема запчастей Case IH PUMA 165 - (35.300.AN[01]) - VAR - 391155, 758037, 758038, 758039, 758040, 758041, 758042, 758043, 758044 - OIL FILTER, POWERSHIFT (35) - HYDRAULIC SYSTEMS
9
21.118.af (01)
6
3
8
1
10
7
5
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87313049

FILTER ASSY

ASSY, Incl 2 - 5

1шт.

2

87705159

FILTER COVER

ASSY, Incl 6 - 9

1шт.

3

87708150

HYDRAULIC OIL FILTER,Filter & Seal

Suction, 32 Micron

1шт.

4

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

5

87705160

ARRESTER

1шт.

6

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

1шт.

7

NSS

NOT SOLD SEPARAT

Oring, Incl in 2

1шт.

8

NSS

NOT SOLD SEPARAT

Cover, Incl in 2

1шт.

9

NSS

NOT SOLD SEPARAT

Gasket, Incl in 2

1шт.

10

15972421

SCREW,Hex, M10 x 1.25 x 130mm, Cl 8.8

2шт.

Выбрано товаров: 10
