/ / / / / / / / (35.204.BQ[08]) - VAR - 758060 - 4 REMOTE CONTROL VALVE (EHR W/PB), COMPONENTS

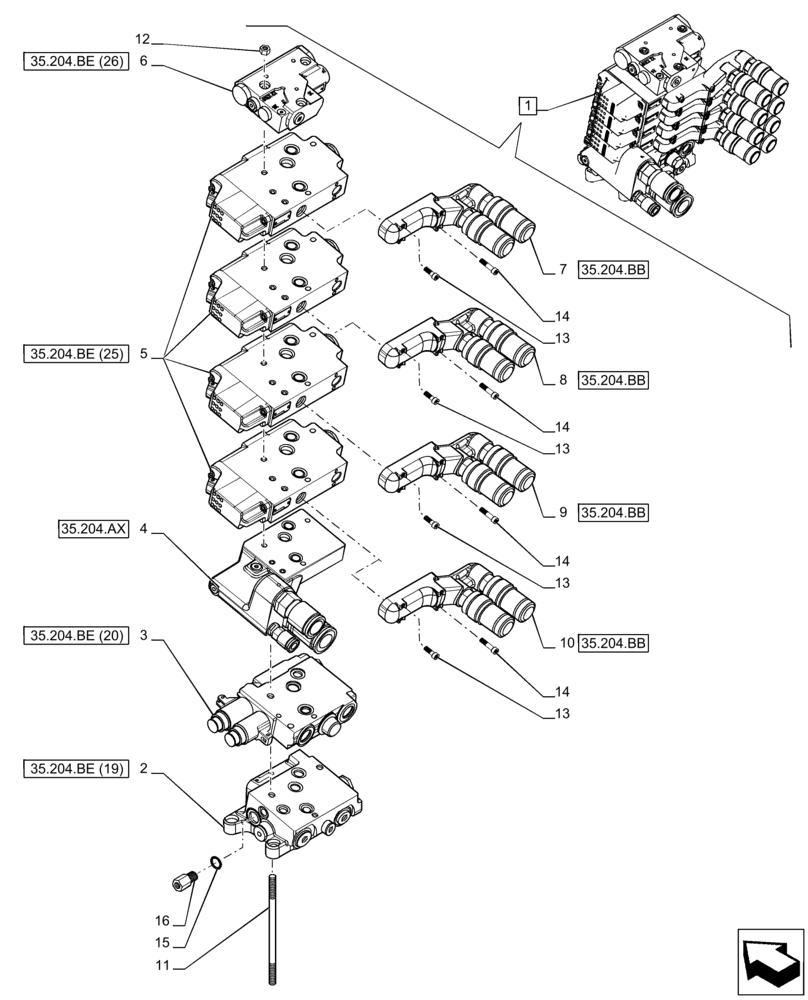

Запчасти Case IH PUMA 165 (35.204.BQ[08]) - VAR - 758060 - 4 REMOTE CONTROL VALVE (EHR W/PB), COMPONENTS (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case IH PUMA 165 - (35.204.BQ[08]) - VAR - 758060 - 4 REMOTE CONTROL VALVE (EHR W/PB), COMPONENTS (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/caseih/5228240.png)
7
14
9
35.204.ax
6
13
16
4
13
1
11
12
13
14
35.204.be (26)
8
35.204.be (19)
15
35.204.bb
35.204.bb
14
10
13
35.204.be (20)
35.204.be (25)
35.204.bb
2
35.204.bb
14
3
5
1
84266084
CONTROL VALVE
Assy, Incl 2 - 16
1шт.
2
87730706
CONTROL VALVE
1шт.
2
87730706R
REMAN-HYD VALVE
1шт.
2
87730706C
CORE-VALVE HYD
Return Number
1шт.
3
84175671
VALVE SECTION
1шт.
3
84175671R
REMAN-HYD VALVE
1шт.
3
84175671C
CORE-VALVE HYD
Return Number
1шт.
4
84146807
HYD VALVE SECTION
1шт.
5
84230181
HYD VALVE SECTION
4шт.
5
84230181R
REMAN-HYD VALVE
4шт.
5
84230181C
CORE-VALVE HYD
Return Number
4шт.
6
84230200
HYD VALVE SECTION
1шт.
7
87381965
QUICK MALE COUPLING
4 EHR
1шт.
8
87381964
QUICK MALE COUPLING
3 EHR
1шт.
9
87381963
QUICK MALE COUPLING
2 EHR
1шт.
10
87381958
QUICK MALE COUPLING
1 EHR
1шт.
11
84151304
THREADED TIE-ROD
M8
3шт.
12
5195169
NUT,M8
M8
3шт.
13
47129474
HEX SOC SCREW,M6 x 35mm
M6
6шт.
14
47129475
HEX SOC SCREW,M6 x 50mm
M6
6шт.
15
5191704
CHECK VALVE
1шт.
16
5191705
O-RING,9.4mm D x 2.1mm Thk
1шт.
