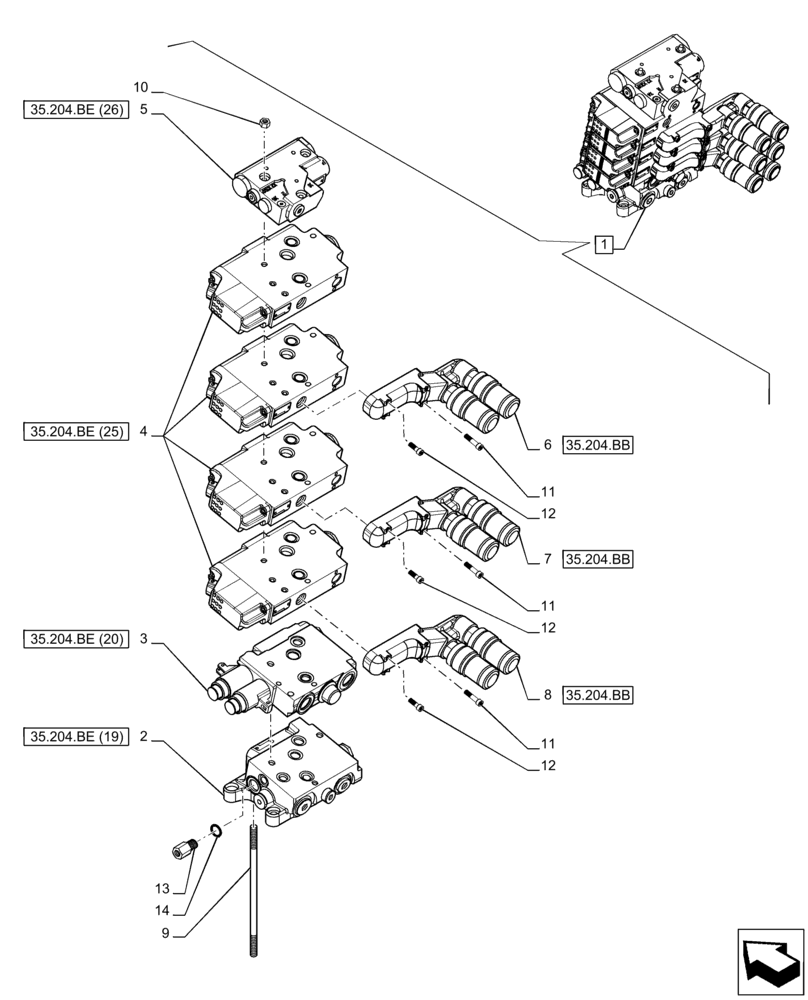

Запчасти Case IH PUMA 165 (35.204.BQ[06]) - VAR - 758060 - 4 REMOTE CONTROL VALVE (EHR), COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84266085

CONTROL VALVE

Assy, Incl 2 - 14

1шт.

2

87730706

CONTROL VALVE

1шт.

2

87730706R

REMAN-HYD VALVE

1шт.

2

87730706C

CORE-VALVE HYD

Return Number

1шт.

3

84175671

VALVE SECTION

1шт.

3

84175671R

REMAN-HYD VALVE

1шт.

3

84175671C

CORE-VALVE HYD

Return Number

1шт.

4

84230181

HYD VALVE SECTION

4шт.

4

84230181R

REMAN-HYD VALVE

4шт.

4

84230181C

CORE-VALVE HYD

Return Number

4шт.

5

84230181

HYD VALVE SECTION

1шт.

5

84230181R

REMAN-HYD VALVE

1шт.

5

84230181C

CORE-VALVE HYD

Return Number

1шт.

6

87381964

QUICK MALE COUPLING

3 EHR

1шт.

7

87381963

QUICK MALE COUPLING

2 EHR

1шт.

8

87381958

QUICK MALE COUPLING

1 EHR

1шт.

9

47129473

THREADED TIE-ROD

M8

3шт.

10

5195169

NUT,M8

M8

3шт.

11

47129475

HEX SOC SCREW,M6 x 50mm

M6

6шт.

12

47129474

HEX SOC SCREW,M6 x 35mm

M6

6шт.

13

5191704

CHECK VALVE

1шт.

14

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.
