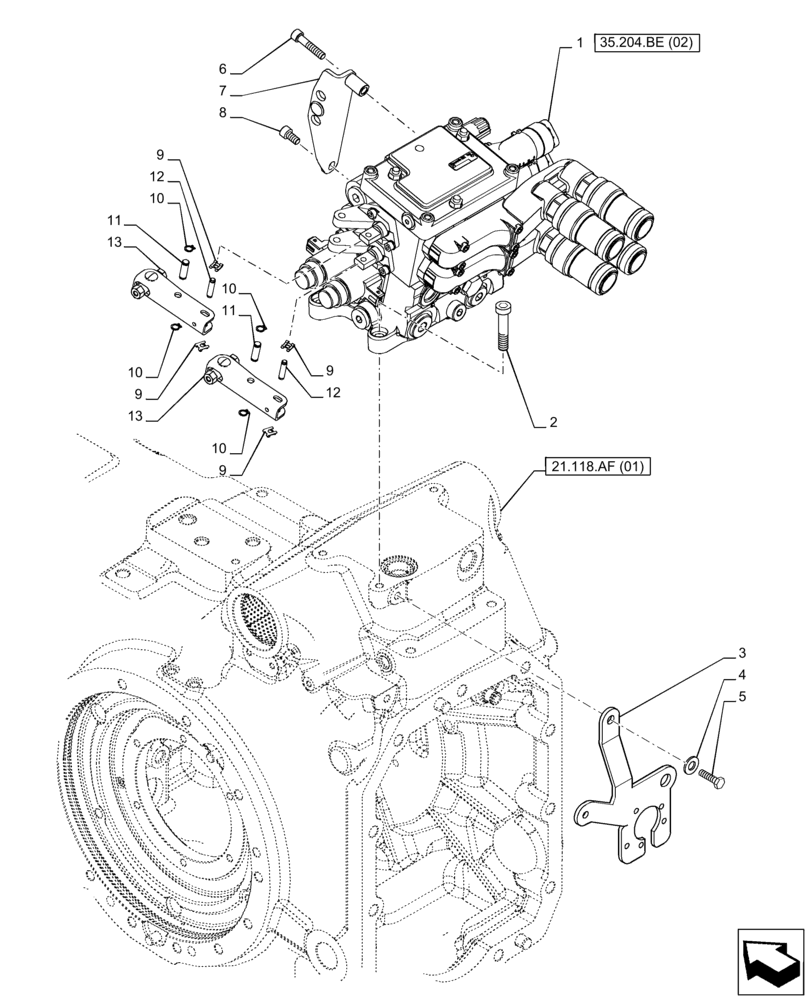

Запчасти Case IH PUMA 165 (35.204.BE[01]) - VAR - 391163 - 2 REMOTE CONTROL VALVE (MHR) (35) - HYDRAULIC SYSTEMS

1

87312721

CONTROL VALVE

1шт.

2

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

3

84412881

SUPPORT

1шт.

4

12638621

WASHER,M10 x 18 x 2

10.5 x 18 x 2

2шт.

5

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

6

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

7

84486550

STOP

1шт.

8

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

1шт.

9

11063971

SPRING CLIP,M6

4шт.

10

11065676

SNAP RING,M8, Ext

4шт.

11

5113008

PIN,8mm OD x 26mm L

2шт.

12

5193177

PIN,6mm OD x 29.48mm L

6

2шт.

13

87358094

LEVER

2шт.
