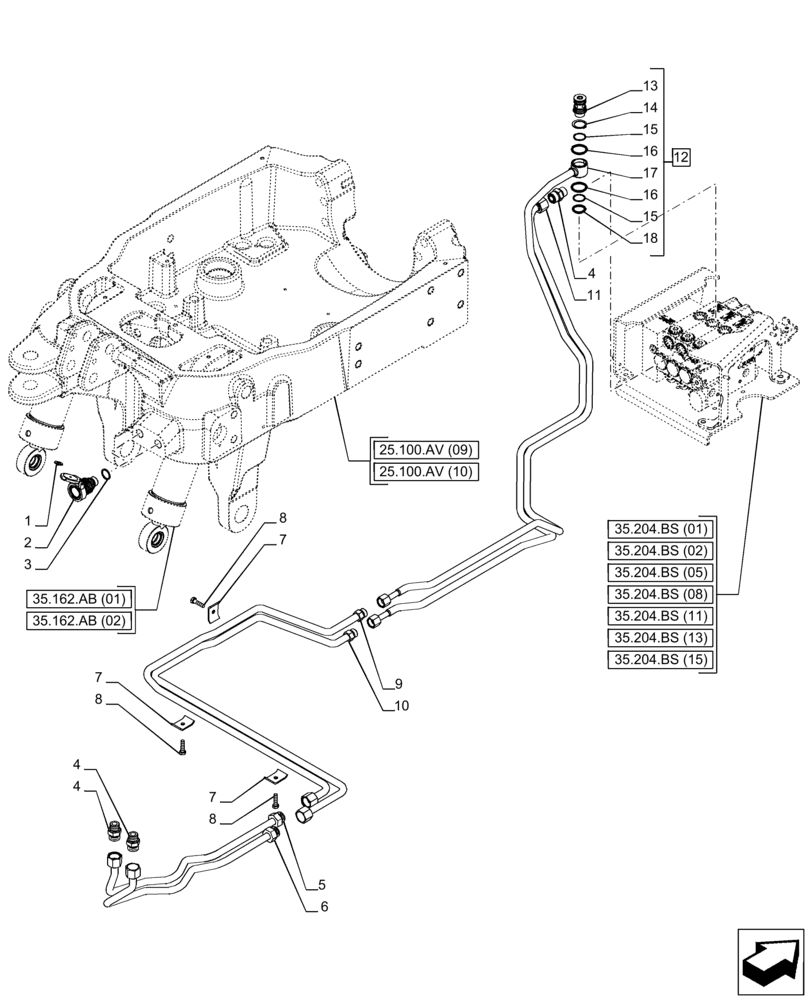

Запчасти Case IH PUMA 165 (35.162.AG[07]) - VAR - 758092, 758093 - 3 POINT HITCH, FRONT, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

87731144

DISC,20mm D

Black Plus

1шт.

1

87731145

DISC,20mm D

Black Minus

1шт.

2

87301571

QUICK MALE COUPLING,M22 x 1.5

2шт.

3

11270860

SEAL,22.2mm ID x 26.9mm OD x 1.5mm Thk

2шт.

4

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

3шт.

5

84214787

HYD TUBE,16.00mm OD x 695.00mm

1шт.

6

84214788

HYD TUBE,16.00mm OD x 750.00mm

1шт.

7

47057074

CLAMP,48.6mm x 30mm

3шт.

8

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

3шт.

9

84288012

HYD TUBE,1336.50mm

1шт.

10

84214786

HYD TUBE,16.00mm OD x 1387.00mm

1шт.

11

47526710

PIPE

1шт.

12

47526708

PIPE

ASSY, Incl 13 - 18

1шт.

13

47530975

BANJO BOLT,M22 x 1.5

1шт.

14

300629

SNAP RING,M28, Ext

1шт.

15

47361752

RING,24.28mm ID x 28.64mm OD x 1.35mm Thk

2шт.

16

271913

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

2шт.

17

NSS

NOT SOLD SEPARAT

Pipe, Incl in 12

2шт.

18

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.
