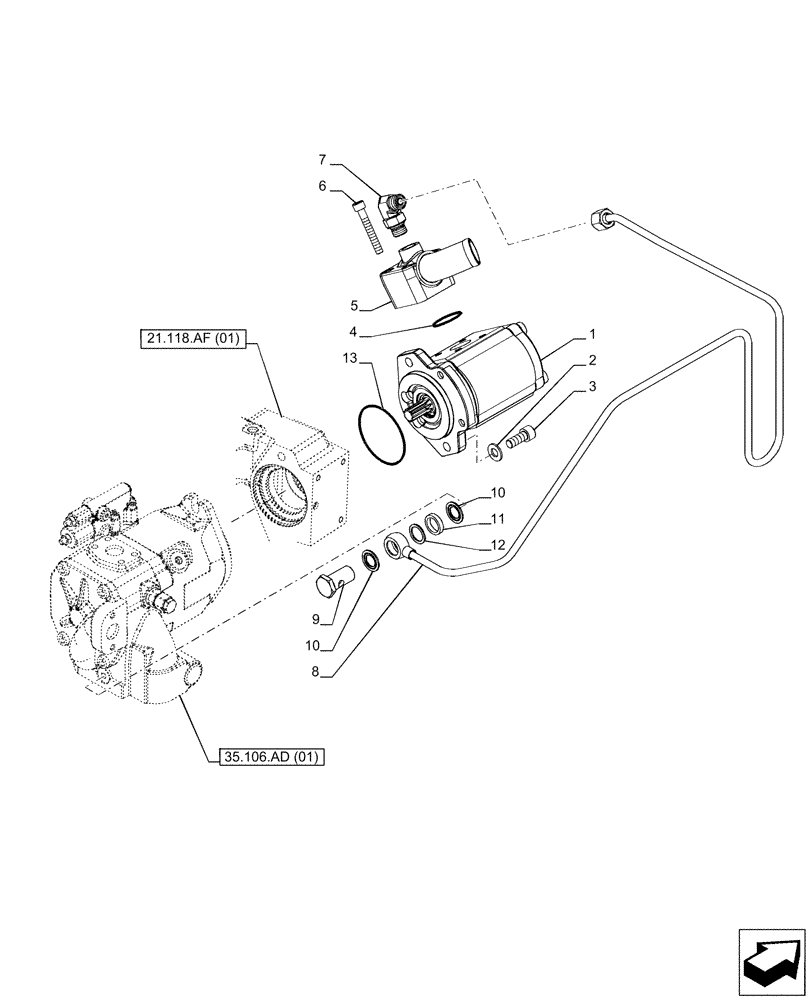

Запчасти Case IH PUMA 165 (35.104.AA[01]) - VAR - 391155, 758037, 758038, 758039, 758040, 758041, 758042, 758043, 758044 - HYDRAULIC PUMP, POWERSHIFT (35) - HYDRAULIC SYSTEMS

1

84355757

HYDRAULIC PUMP,21.95 CC

(25 CC/Rev)

1шт.

2

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

3

14307421

HEX SOC SCREW,M10 x 1.25 x 25mm, Cl 8.8

2шт.

4

14463681

O-RING,31.34mm ID x 3.53" Width

1шт.

5

84181974

FLANGE

1шт.

6

14302231

SCREW,M8 x 55mm, Cl 10.9

4шт.

7

47385964

90 ELBOW,11/16"-16 x M16 x 1.5

1шт.

8

47443974

SUPPORT

Pump Booster

1шт.

9

5170235

BANJO BOLT,M18 x 1.5 x 35mm

1шт.

10

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

2шт.

11

84398569

SPACER,18.5mm ID x 24.5mm OD x 5mm L

1шт.

12

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

13

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.
