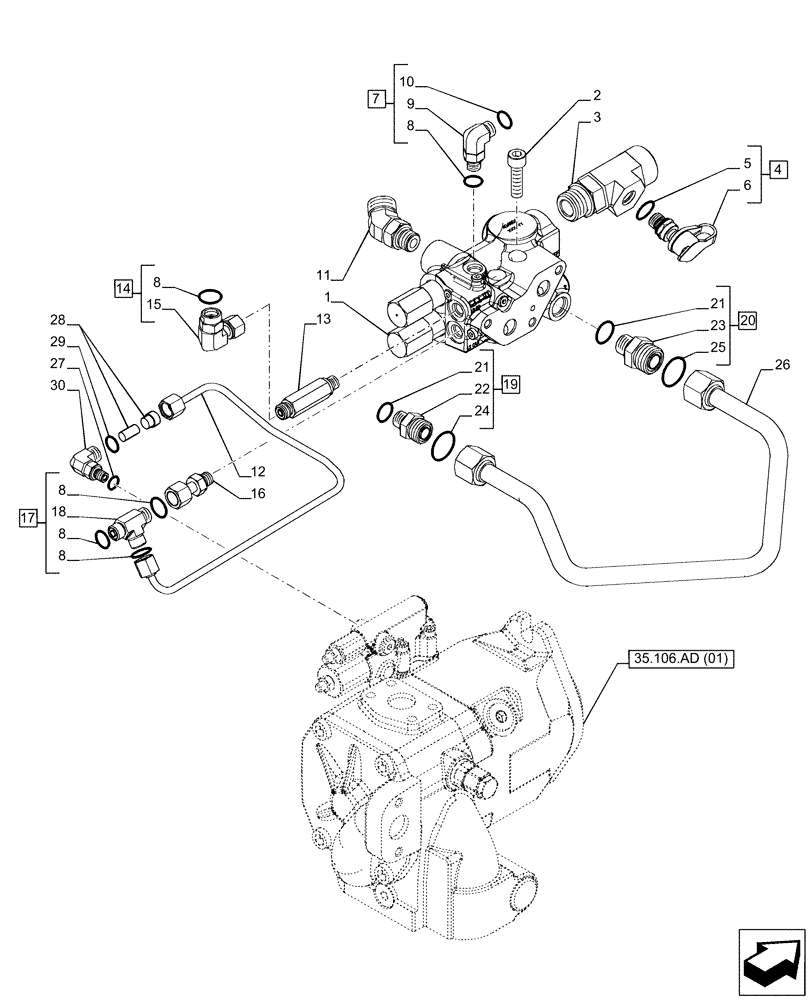

Запчасти Case IH PUMA 165 (35.100.AZ[02]) - VAR - 758037, 758039, 758040, 758042, 758044 - PRIORITY VALVE, POWERSHIFT (35) - HYDRAULIC SYSTEMS

1

84141056

CONTROL VALVE

1шт.

2

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

3

47603791

RUN TEE

1шт.

4

5185423

COUPLING

ASSY, Incl 5, 6

1шт.

5

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

6

NSS

NOT SOLD SEPARAT

Coupling, Incl in 4

1шт.

7

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 8 (Qty 1) - 10

1шт.

8

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5шт.

9

NSS

NOT SOLD SEPARAT

Elbow, Incl in 7

1шт.

10

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

11

84270256

FITTING

1шт.

12

47443969

PIPE

LS Pump

1шт.

13

84270265

FITTING,M12 x 1.5 x 9/16"-18

1шт.

14

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

ASSY, Incl 8 (Qty 1), 15

1шт.

15

NSS

NOT SOLD SEPARAT

Elbow, Incl in 14

1шт.

16

84182082

HYD CONNECTOR,9/16"-18 x M12 x 1.5 ORB

1шт.

17

9840568

TEE,9/16"-18 ORFS

ASSY, Incl 8 (Qty 3), 18

1шт.

18

NSS

NOT SOLD SEPARAT

Tee, Incl in 17

1шт.

19

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

ASSY, Incl 21 (Qty 1), 22, 24

1шт.

20

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

ASSY, Incl 21 (Qty 1), 23, 25

1шт.

21

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

22

NSS

NOT SOLD SEPARAT

Connector, Incl in 19

1шт.

23

NSS

NOT SOLD SEPARAT

Connector, Incl in 20

1шт.

24

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

25

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

26

47443972

PIPE

TVB to Tank

1шт.

27

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

28

47126655

FILTER STRAINER

1шт.

29

5185507

O-RING,8.92mm ID x 1.83mm Width

1шт.

30

47135296

90 ELBOW,9/16"-18 x 7/16"-20

1шт.
