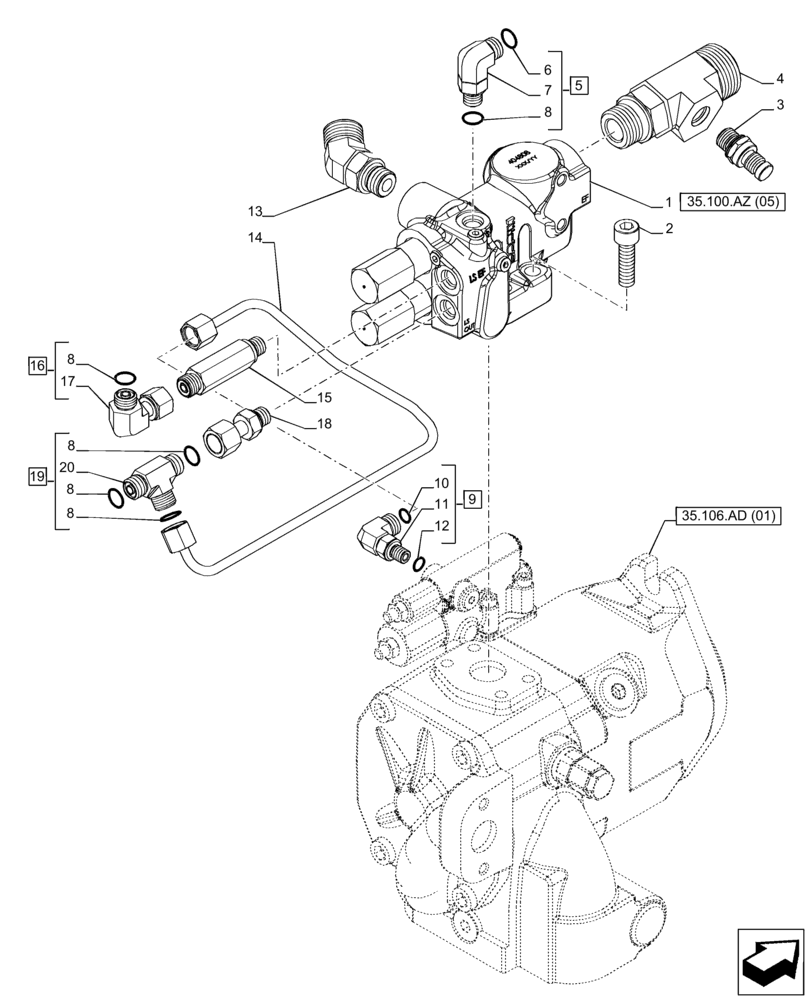

Запчасти Case IH PUMA 165 (35.100.AZ[01]) - VAR - 391155, 758038, 758041, 758043 - PRIORITY VALVE, POWERSHIFT (35) - HYDRAULIC SYSTEMS

1

84263753

HYDRAULIC VALVE

1шт.

2

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

3

9625546

CAP,11/16" - 16 ORFS

1шт.

4

47473370

TEE,1"-7/16-12 ORFS x 11/16-16 ORFS x M27 x 2 ORB

1шт.

5

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 6 - 8 (Q.ty 1)

1шт.

6

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Elbow, Incl in 5

1шт.

8

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5шт.

9

47126658

90 ELBOW,9/16"-18 ORFS x 7/16"-20

ASSY, Incl 10 - 12

1шт.

10

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

Elbow, Incl in 9

1шт.

12

5185507

O-RING,8.92mm ID x 1.83mm Width

1шт.

13

84270256

FITTING

45°

1шт.

14

47443969

PIPE

LS Pump

1шт.

15

84270265

FITTING,M12 x 1.5 x 9/16"-18

1шт.

16

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

ASSY, Incl 8 (Q.ty 1), 17

1шт.

17

NSS

NOT SOLD SEPARAT

Elbow, Incl in 16

1шт.

18

84182082

HYD CONNECTOR,9/16"-18 x M12 x 1.5 ORB

1шт.

19

9840568

TEE,9/16"-18 ORFS

ASSY, Incl 8 (Q.ty 3), 20

1шт.

20

NSS

NOT SOLD SEPARAT

Tee, Incl in 19

1шт.
