Запчасти Case IH PUMA 165 (31.116.AG[01]) - VAR - 391139, 758024 - PTO, HOUSING (31) - IMPLEMENT POWER TAKE OFF

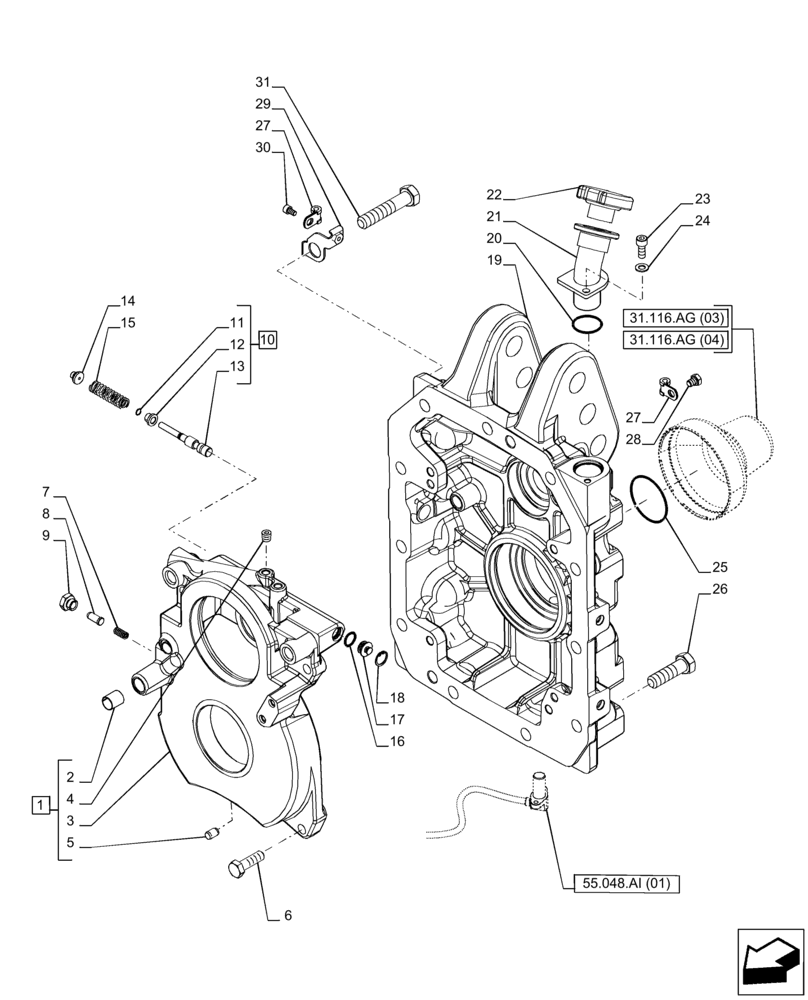

Схема запчастей Case IH PUMA 165 - (31.116.AG[01]) - VAR - 391139, 758024 - PTO, HOUSING (31) - IMPLEMENT POWER TAKE OFF
27
5
24
8
25
19
27
16
17
11
23
4
13
29
31
12
55.048.ai (01)
30
26
6
1
15
22
21
28
31.116.ag (04)
20
18
2
7
3
14
9
31.116.ag (03)
10

Артикул

Название

Примечание

Количество

1

87673377

COVER

ASSY, Incl 2 - 5

1шт.

2

5129030

BUSHING,16.04mm ID x 18mm OD x 20mm L

3шт.

3

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

4

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

3шт.

5

10839710

DOWEL,M10 x 15.00mm

2шт.

6

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

7

5128251

SPRING,Compression, 8.5mm OD x 20mm L

1шт.

8

5193099

PAWL,8.5mm D x 22.5mm L

1шт.

9

5193100

PLUG,Hex, M14 x 1.5

1шт.

10

47128616

VALVE

ASSY, Incl 11 - 13

1шт.

11

13397370

SNAP RING,M8, Int

1шт.

12

84271074

SPACER,8mm ID x 15.6mm OD x 10mm L

1шт.

13

NSS

NOT SOLD SEPARAT

Valve, Incl in 10

1шт.

14

47127951

CAP COVER

1шт.

15

47123788

SPRING,15mm OD x 87.5mm L

1шт.

16

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

1шт.

17

47128597

PLUG,6mm ID x 19mm OD x 13mm L

1шт.

18

11057776

SNAP RING,M19, Int

1шт.

19

47131252

HOUSING

1шт.

20

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

21

47135307

FILLER

1шт.

22

82005372

FILLER CAP,Male, Vented_No Lockable

1шт.

23

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

24

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

25

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

1шт.

26

15981024

SCREW,Hex, M16 x 1.5 x 55mm, Cl 8.8

7шт.

27

10449890

CLAMP,6mm, Coat, 9mm Bolt Hole, P Type

2шт.

28

16042924

SCREW,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd

1шт.

29

47612128

BRACKET

1шт.

30

14305021

HEX SOC SCREW,M6 x 10mm, Cl 8.8, Full Thd

1шт.

31

11254124

BOLT,Hex, M16 x 1.5 x 80mm, Cl 8.8

4шт.

Выбрано товаров: 31
