Запчасти Case IH PUMA 165 (31.116.AC[04]) - VAR - 758024 - PTO 540E/1000/1000E RPM, DRIVE SHAFT, FRONT (31) - IMPLEMENT POWER TAKE OFF

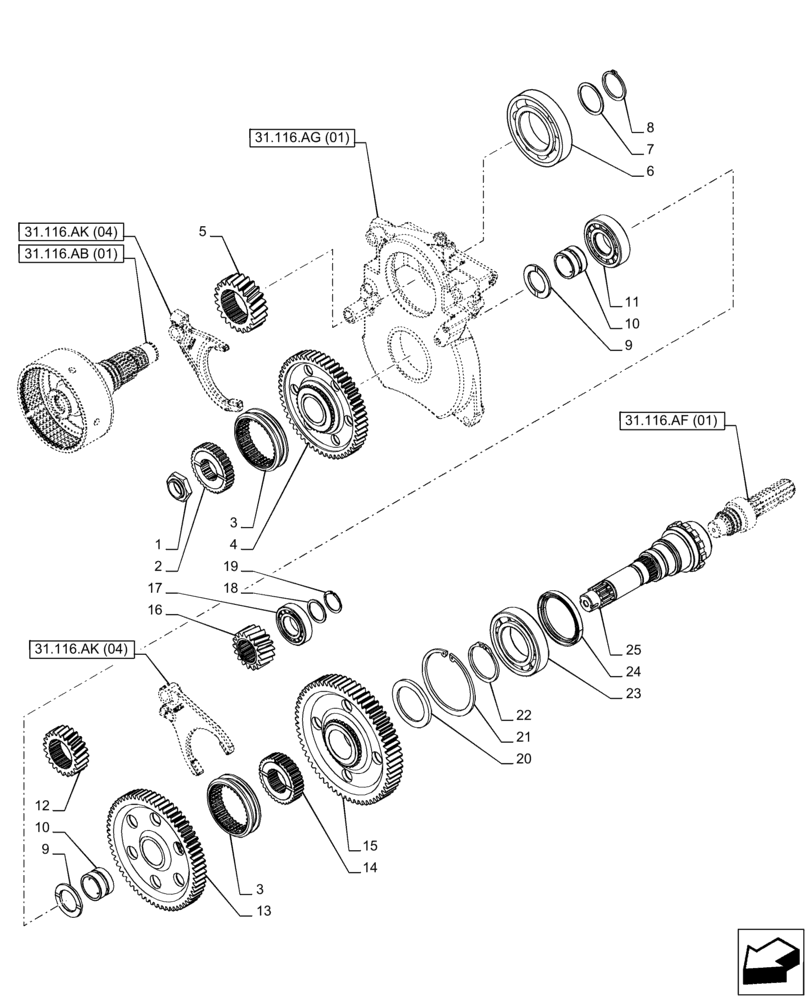

Схема запчастей Case IH PUMA 165 - (31.116.AC[04]) - VAR - 758024 - PTO 540E/1000/1000E RPM, DRIVE SHAFT, FRONT (31) - IMPLEMENT POWER TAKE OFF
6
31.116.ak (04)
25
7
21
9
31.116.ak (04)
18
11
22
5
31.116.af (01)
9
15
12
8
3
31.116.ab (01)
4
24
1
3
14
20
16
23
17
10
19
10
13
2
31.116.ag (01)

Артикул

Название

Примечание

Количество

1

5122985

NUT,Ring, M32, 1.5 Pitch

1шт.

2

87578127

SLEEVE,Z12

Z12, PTO Control

1шт.

3

87578126

SLEEVE,Z12

Z12, PTO Control

2шт.

4

84288610

GEAR,Z47

Z47, 1000E RPM

1шт.

5

84288614

GEAR,Z29

Z29, 1000E RPM

1шт.

6

5182640

BALL BEARING,65mm ID x 120mm OD x 23mm W

1шт.

7

5192262

THRUST WASHER,50.10mm ID x 60.00mm OD x 2.00mm

1шт.

8

5138419

SNAP RING,M50

1шт.

9

5192170

ANTI-WRAP PLATE

2шт.

10

5192401

BUSHING,40mm ID x 48mm OD x 32mm L

2шт.

11

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

1шт.

12

84382929

GEAR,Z28

Z28, 1000 RPM

1шт.

13

84382936

GEAR,Z53

Z53, 1000 RPM

1шт.

14

87578128

GEAR,21T Internal / 33T External

Z21, PTO Control

1шт.

15

84289050

GEAR,Z56

Z56, 540E RPM

1шт.

16

84289051

GEAR,Z19

Z19, 540E RPM

1шт.

17

5151460

ROLLER BEARING,35mm ID x 72mm OD x 17mm W

1шт.

18

5154308

THRUST WASHER,35.1mm ID x 43mm OD x 2mm Thk

1шт.

19

5154307

SNAP RING,M35

1шт.

20

47131733

RING,65mm ID x 88mm OD x 6.7mm Thk

1шт.

21

11075976

SNAP RING,M120, Int

1шт.

22

5143130

SNAP RING,M60, Ext x 4mm

1шт.

23

26794670

BALL BEARING,65mm ID x 120mm OD x 23mm W

1шт.

24

5196487

OIL SEAL,80.00mm ID x 100.00 OD x 10.00mm

1шт.

25

47131255

DRIVE SHAFT,21T, 12T, 20T, 12T

Driven Front

1шт.

Выбрано товаров: 25
