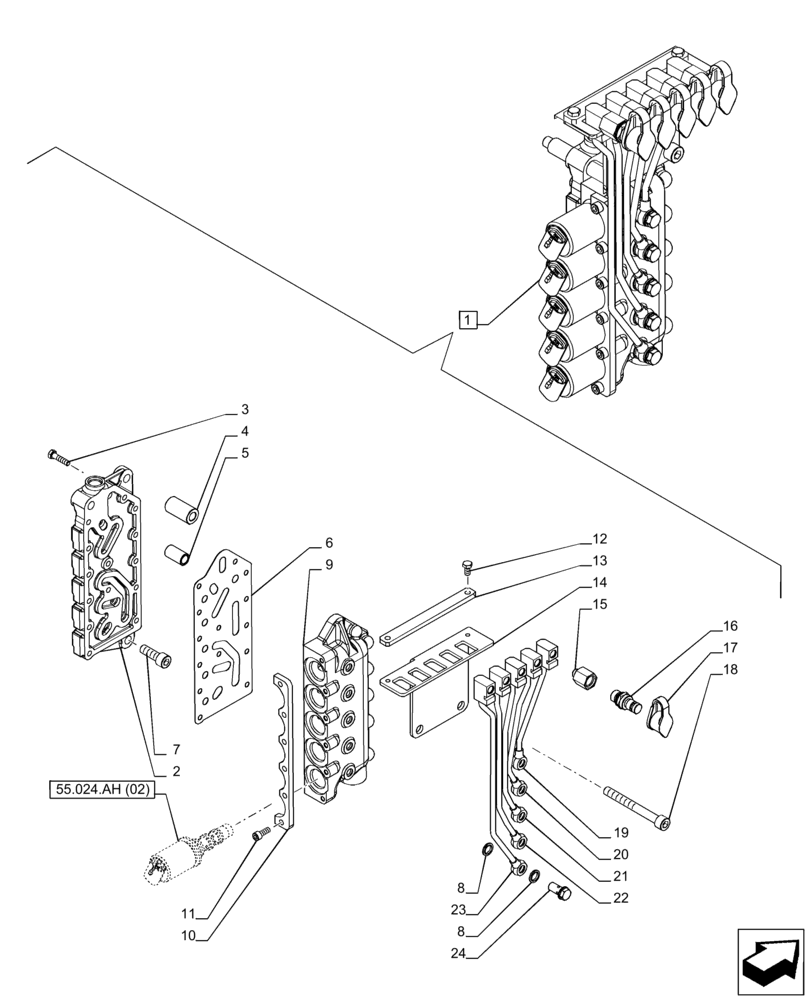

Запчасти Case IH PUMA 165 (21.133.AK[04]) - VAR - 758016, 758017, 758018, 758019, 758020, 758021 - TRANSMISSION CONTROL VALVE, COMPONENTS, FULL-POWERSHIFT (21) - TRANSMISSION

1

NS

NOT SERVICED

ASSY, Serviced by components, Incl 2 - 24

1шт.

2

87678192

BODY

1шт.

3

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

14шт.

4

5173616

SPACER,10.5mm ID x 20mm OD x 37mm L

10.5 x 20 x 37

1шт.

5

5173615

SPACER,10.5mm ID x 20mm OD x 27mm L

10.5 x 20 x 57

1шт.

6

5165241

GASKET,0.5mm Thk

1шт.

7

14307521

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

8

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

10шт.

9

47134550

VALVE BODY

1шт.

10

47134564

FIXING PLATE

1шт.

11

14305231

HEX SOC SCREW,M6 x 16mm, Cl 10.9, Full Thd

6шт.

12

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

2шт.

13

84278577

BRACKET,149mm x 16mm

149mm

1шт.

14

84278567

BRACKET

1шт.

15

5185422

HYD CONNECTOR,M10 x 1 - M14 x 1.5

5шт.

16

5185423

COUPLING

5шт.

17

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

5шт.

18

14308324

SCREW,M10 x 1.25 x 70mm, Cl 8.8

2шт.

19

84278499

HYD TUBE

Check Clutch A

1шт.

20

84585248

HYD TUBE

Check Clutch B

1шт.

21

84585250

HYD TUBE

Check Clutch C

1шт.

22

84585252

HYD TUBE

Check Clutch D

1шт.

23

84278508

HYD TUBE

Check Clutch E

1шт.

24

87736835

BOLT,M10 x 1 x 20mm L

5шт.
